BOE NV156FHM-N47 15.6 Inch 1920x1080 Resolution 250 cd/m² Brightness PC LCD Module TFT-LCD Display

Name: BOE NV156FHM-N47 15.6 Inch 1920x1080 Resolution 250 cd/m² Brightness PC LCD Module TFT-LCD Display
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NV156FHM-N47
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NV156FHM-N47
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1080pixels

Style:

FHD 30P

Brightness:

250 CCD M2

Color:

262K

Contrast Ratio:

800 :1

Working Life:

50K Hours

Packaging Details:

Industrial packing

Highlight:

NV156FHM-N47

15.6 Inch Tft Lcd Display

Product Description

NV156FHM-N47 BOE 15.6 Inch 1920*1080 PC LCD Module

Product Overview

BOE NV156FHM-N47 is a 15.6-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system, designed for laptop applications and featuring eDP interface technology.

Technical Specifications

Panel Brand	BOE	Panel Model	NV156FHM-N47 (BOE06D2)
Panel Size	15.6"	Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*1080 (FHD)	Pixel Format	RGB Vertical Stripe
Display Area	344.16(W)*193.59(H) mm	Bezel Opening	-
Brightness	250 cd/m² (Typ.)	Contrast Ratio	800:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Display Mode	ADS, Normally Black, Transmissive
Best View on	Symmetry	Response Time	30ms (Typ.)(Tr+Td)
Display Colors	262K 45% NTSC	Lamp Type	10S4P WLED, 15K hours, With LED Driver
Frequency	60Hz	Touch Screen	Without
Shape Style	Slim (PCBA Flat, T≤3.2mm)	Application	Laptop
Signal Interface	eDP (2 Lanes), 30 pins, Connector
Input Voltage	3.3V (Typ.)
Operating Temperature	0 ~ 50 °C	Storage Temperature	-20 ~ 60 °C

Key Features

Antiglare Surface
Wide Viewing Angle
Landscape Type Orientation
White LED Backlight with Driver
Wide Aspect Ratio
Signal Interface Position Reverse
eDP 1.2 Interface
Slim Profile Design (T≤3.2mm)

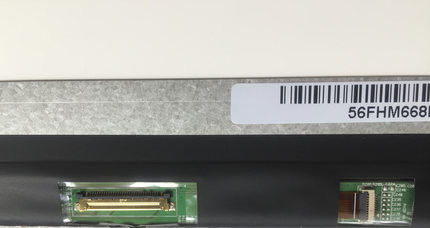

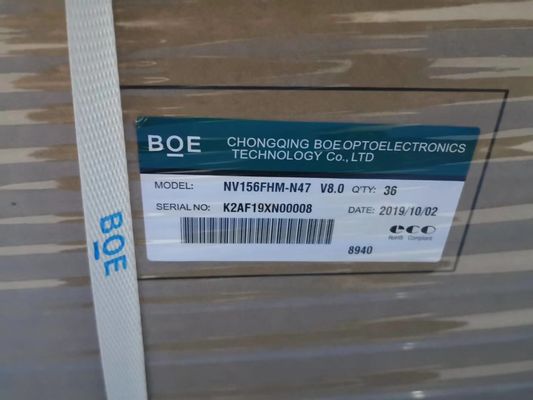

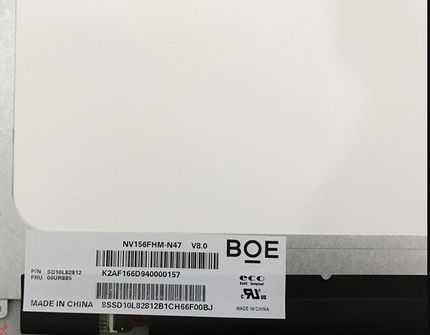

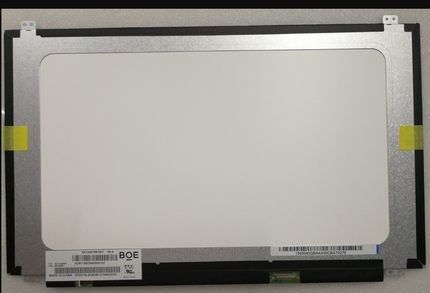

Product Images

Product Details

The NV156FHM-N47 (Product Code: BOE06D2) is a 15.6" diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd. This model features an integral WLED backlight system with LED driver and operates without touch screen capability. The display supports maximal vibration level of 1.5G (14.7 m/s²).

Production Information: Mass production began Q3 2016. This model is currently in production. Specification data first entered December 14, 2017, with latest update October 19, 2019.

Quality Assurance: All products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.

Important Notice: For integration into your products, we strongly recommend contacting BOE or their authorized agents for the latest production status and specification details. The production status information provided is for reference only and should not be used as the sole basis for decision-making.
