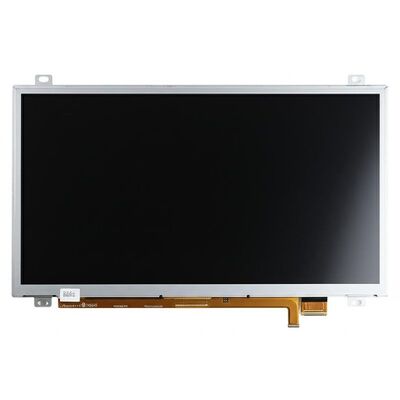

250CD/M2 30 Pin Lcd Touch Screen Module Glass Oled Samsung 23 Inch LTM230HL10-C01

Samsung 23inch Destop lcd pannel LTM230HL10-C01 ,1920*1080 Pixels Panel 250CD/M2 30 Pin

Manufacturer

SAMSUNG

Model Name

LTM230HL10-C01

Screen Size

23.0 inch

Screen Type

LCM , a-Si TFT-LCD

Pixel Number

1920(RGB)×1080 (FHD)

Arrangement

RGB Vertical Stripe

Active Area(mm)

509.184 × 286.416 (H×V)

Outline(mm)

522.38 × 305.62 × 12.6 (H×V×D)

Luminance

250 cd/m² (Typ.)

Contrast Ratio

1000 : 1 (Typ.) (TM)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Response

14 (Typ.)(G to G) ms

Good View at

Symmetry

Work Mode

PLS, Normally Black, Transmissive

Color Depth

16.7M 72% NTSC

Backlight

WLED , 40K hours , No Driver

Mass

2.38Kgs (Max.)

Used for

Refresh Rate

60Hz

Touchscreen

Without

Signal Type

LVDS (2 ch, 8-bit) , Connector , 30 pins

Voltage Supply

5.0V (Typ.)

Max. Ratings

Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

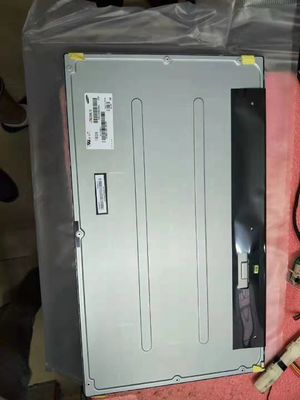

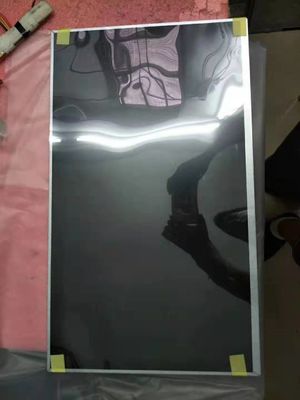

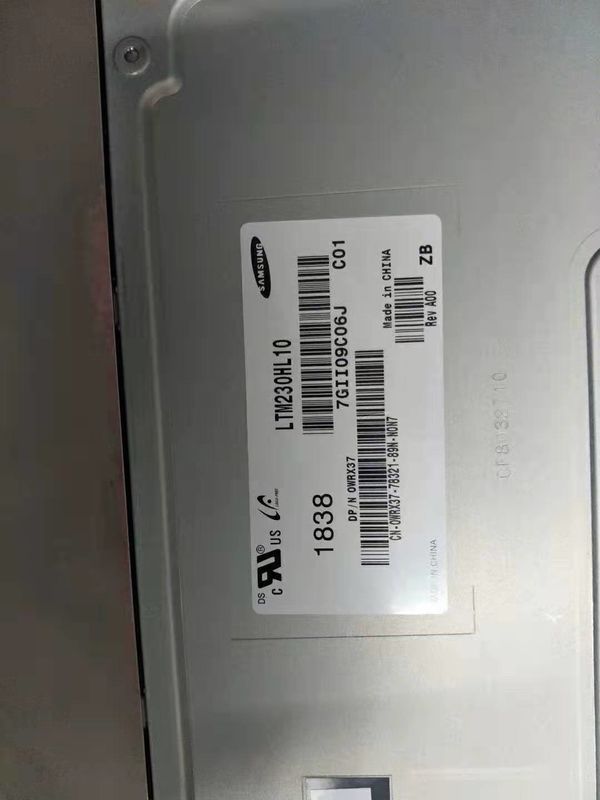

LTM230HL10-C01 is a 23.0" diagonal a-Si TFT-LCD display panel product from Samsung Display Co., Ltd. (hereafter called SAMSUNG), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by EINKLCD in the following: WLED Backlight . Based on its features, Einklcd recommend that this model be applied to Desktop Monitor etc. According to the information stored in einklcd this model mass production on Q3, 2016, Now this model is discontinued. We inputted this model's specification on Nov 27 2017 for the first time, and the latest update on Jul 25 2019. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with SAMSUNG or it's agent to learn lateast production and specification detail of LTM230HL10-C01. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

All lcd products we sell on line with ONE year quality warranty.

All lcd products provided full quality test before delivery.
