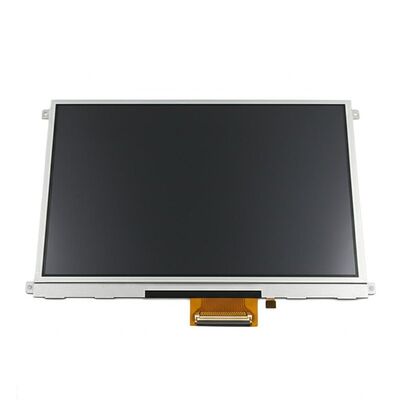

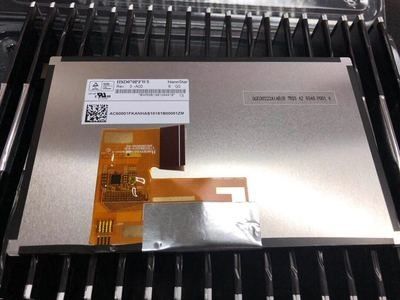

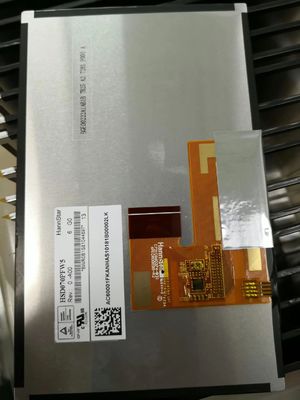

Hanstar 5.7" Display PC LCD Module 1024*600 Pixels HSD070PFW5 For Notebook Tablet PC

Manufacturer

HannStar

Model Name

HSD070PFW5-A00

Screen Size

7.0 inch

Screen Type

LCM, a-Si TFT-LCD

Pixel Number

1024(RGB)×600 (WSVGA)

Arrangement

RGB Vertical Stripe

Active Area(mm)

153.6 × 90 (H×V)

Outline(mm)

161.16 × 100.97 (H×V×D)

Bezel Area(mm)

-

Treatment

Hard coating

Luminance

550 cd/m² (Typ.)

Contrast Ratio

1000 : 1 (Typ.) (TM)

Viewing Angle

85/85/85/85 (Typ.)(CR≥10)

Response

13/15 (Typ.)(Tr/Td) ms

Good View at

Symmetry

Work Mode

IPS Pro, Normally Black, Transmissive

Color Depth

16.7M 50% (CIE1931)

Backlight

3S7P WLED , 10K hours , With LED Driver

Outline Shape

-

Used for

Refresh Rate

60Hz

Touchscreen

Without

Signal Type

LVDS (1 ch, 8-bit) , Connector , 40 pins

Voltage Supply

1.8/3.3/10.7/17/-10V (Typ.)(VDD1/VDD2/AVDD/VGH/VGL)

Max. Ratings

Storage Temp.: -20 ~ 65 °C Operating Temp.: -10 ~ 60 °C

HannStar Display Corporation (hereafter called HannStar) HSD070PFW5-A00 is a 7.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -20 ~ 65°C . It's general features are summarized by Panelook in the following: Wide Viewing Angle, Landscape type, Hight Brightness, White LED Backlight, Wide Aspect Ratio . Based on its features, einklcd recommend that this model be applied to Pad & Tablet, Netbook PC etc. According to the information stored in einklcd this model mass production on Q4, 2016, Now this model is in production. We inputted this model's specification on Jan 11 2018 for the first time, and the latest update on Feb 28 2019. If you want to embed HSD070PFW5-A00 LCM in your future product, einklcd strongly recommend that you should contact with HannStar or it's distributor to learn lateast production and specification detail. The HSD070PFW5-A00 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making
