Samsung LTA320AP12 1366x76832" 450cd/m² Large LCD Display Screen

I'm Online Chat Now
We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

Samsung LTA320AP12 1366x76832" 450cd/m² Large LCD Display Screen

Samsung LTA320AP12 1366x76832" 450cd/m² Large LCD Display Screen
Samsung LTA320AP12 1366x76832" 450cd/m² Large LCD Display Screen Samsung LTA320AP12 1366x76832" 450cd/m² Large LCD Display Screen Samsung LTA320AP12 1366x76832" 450cd/m² Large LCD Display Screen Samsung LTA320AP12 1366x76832" 450cd/m² Large LCD Display Screen Samsung LTA320AP12 1366x76832" 450cd/m² Large LCD Display Screen

Large Image :  Samsung LTA320AP12 1366x76832" 450cd/m² Large LCD Display Screen Get Best Price

Product Details:

Place of Origin: China
Brand Name: Samsung
Certification: Rohs,CE,FCC
Model Number: LTA320AP12

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Led Color: Black Or Silver,16.7M Color For Display
Model: WLED,LCD Style: Wide Screen High Resolution 1366*768pixels
Brightness: 450 Cd/m² Working Life: 50k Hours
Display Size: 32inch Connector: 30pin
High Light:

LTA320AP12

,

1366x768 Lcd Touch Display

Panel Brand SAMSUNG Panel Model LTA320AP12
Panel Size 32.0" Panel Type a-Si TFT-LCD , LCM
Resolution 1366×768(RGB) , WXGA Pixel Format RGB Horizontal Stripe
Display Area 697.685(W)×392.256(H) mm Bezel Opening 703.6(W)×399.0(H) mm
Outline Size 760(W)×450(H) mm Surface Antiglare (Haze 7%), Hard coating (3H)
Brightness 450 cd/m² (Typ.) Contrast Ratio 4000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)  Display Mode APVA, Normally Black, Transmissive
Best View on Symmetry Response Time 8 (Typ.)(G to G)
Display Colors 16.7M 72% NTSC Lamp Type 4 pcs CCFL , 50K hours , With Inverter
Frequency 60Hz  Touch Screen Without
Panel Weight 5.50Kgs (Max.) Application
Signal Interface LVDS (1 ch, 8-bit) , 30 pins , Connector
Input Voltage 12.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C



Samsung LTA320AP12 1366x76832" 450cd/m² Large LCD Display Screen 0Samsung LTA320AP12 1366x76832" 450cd/m² Large LCD Display Screen 1

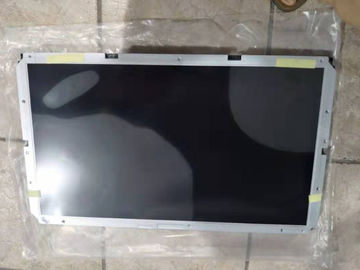

LTA320AP12 is a 32.0" diagonal a-Si TFT-LCD display panel product from Samsung Display Co., Ltd. (hereafter called SAMSUNG), with an integral CCFL backlight system, With Inverter , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Einklcd in the following: Life ≥ 50K hours, With Inverter, Matte , DE (Data Enable) mode. Based on its features,Einklcd recommend that this model be applied to TV Sets etc. According to the information stored in Einklcd this model mass production on Q1, 2010, Now this model is discontinued.  We inputted this model's specification on Apr 4 2013 for the first time, and the latest update on Aug 5 2019. If you want to embed the LCM in your future product, Panelook strongly recommend that you should contact with SAMSUNG or it's agent to learn lateast production and specification detail of LTA320AP12. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.



All our sell lcd products was test one by one before send out to customer to make sure the good quality .
