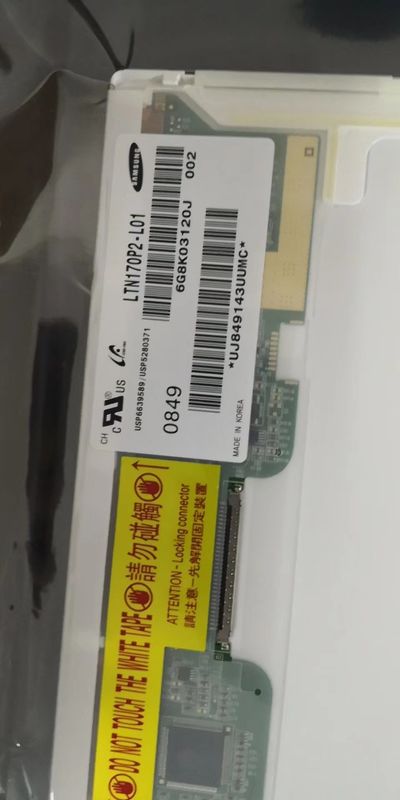

Samsung 17'' Widescreen LCD Computer Monitors LTN170P2-L01 1680*1050 Pixels 300cd

• Panel Brand
  SAMSUNG
• Panel Model
  LTN170P2-L01-0

• Panel Size
  17.0"
• Panel Type
  a-Si TFT-LCD, LCM

• Resolution
  1680(RGB)×1050 , WSXGA+
• Pixel Format
  RGB Vertical Stripe

• Display Area
  367.08(W)×229.425(H) mm
• Bezel Opening
  370.4(W)×232.7(H) mm

• Outline Size
  382.2(W)×244.5(H) ×6.5(D) mm
• Surface
  Antiglare (Haze 25%), Hard coating (3H)

• Brightness
  300 cd/m² (Typ.)
• Contrast Ratio
  600:1 (Typ.) (TM)

• Viewing Angle
  75/75/50/60 (Typ.)(CR≥10)
• Display Mode
  TN, Normally White, Transmissive

• Best View on
  6 o'clock
• Response Time
  20 (Typ.)(Tr+Td)

• Display Colors
  262K 45% NTSC
• Lamp Type
  1 pcs CCFL , 10K hours , Without Driver

• Frequency
  60Hz
• Touch Screen
  Without

• Shape Style
  Wedge (PCBA Bent, T≥5.2mm)
• Application


• Signal Interface
• LVDS (2 ch, 6-bit) , 30 pins , Connector

• Input Voltage
• 3.3V (Typ.)

• Environment
• Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Samsung Display Co., Ltd. (hereafter called SAMSUNG) LTN170P2-L01-0 is a 17.0 inch diagonal a-Si TFT-LCD display panel product, with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einkcld in the following: Matte . Based on its features, einklcd recommend that this model be applied to Laptop etc. Now this model is discontinued.  We inputted this model's specification on Jan 29 2013 for the first time, and the latest update on Mar 12 2018. If you want to embed LTN170P2-L01-0 LCM in your future product, einklcd strongly recommend that you should contact with SAMSUNG or it's distributor to learn lateast production and specification detail. The LTN170P2-L01-0 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
