450CD/M2 20 Pin Industrial LCD Display 1024*768 Pixels CLAA150XQ01CW CPT 15"

Customer Reviews
We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

450CD/M2 20 Pin Industrial LCD Display 1024*768 Pixels CLAA150XQ01CW CPT 15"

450CD/M2 20 Pin Industrial LCD Display 1024*768 Pixels CLAA150XQ01CW CPT 15"
450CD/M2 20 Pin Industrial LCD Display 1024*768 Pixels CLAA150XQ01CW CPT 15" 450CD/M2 20 Pin Industrial LCD Display 1024*768 Pixels CLAA150XQ01CW CPT 15"

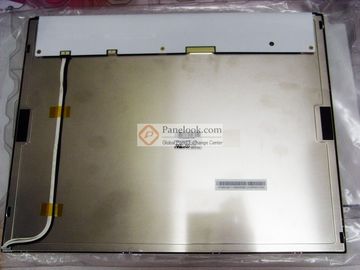

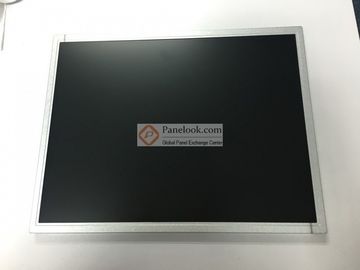

Large Image :  450CD/M2 20 Pin Industrial LCD Display 1024*768 Pixels CLAA150XQ01CW CPT 15"

Product Details:
Place of Origin: China
Brand Name: CPT
Certification: Rohs,CE,FCC
Model Number: CLAA150XQ01CW
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week

450CD/M2 20 Pin Industrial LCD Display 1024*768 Pixels CLAA150XQ01CW CPT 15"

Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Oled Color: 16.7M Colors
Model: WLED Style: Wide Screen High Resolution 1024*768
Brightness: 450cd Connector: 20
Contrast Ratio: 600:1 Working Time: 70k Hours
High Light:

industrial panel pc touch screen

,

industrial computer monitor

  • Brand
  • CPT
  • Model
  • CLAA150XQ01CW
  • Diagonal Size
  • 15.0 inch
  • Typea-Si TFT-LCD, LCM
  • Pixel Format1024(RGB)×768 [XGA]
  • ConfigurationRGB Vertical Stripe
  • Active Area304.128(H)×228.096(V) mm
  • Outline Dim.326.5(H)×253.5(V) ×11.5(D) mm
  • Bezel Area307.4(H)×231.3(V) mm
  • TreatmentHard coating (3H)
  • Luminance450 cd/m² (Typ.)
  • Contrast Ratio700:1 (Typ.) (TM)
  • View Direction6 o'clock
  • Response Time10/15 (Typ.)(Tr/Td)
  • Viewing Angle80/80/70/70 (Typ.)(CR≥10)
  • Operating ModeTN, Normally White, Transmissive
  • Support Color16.7M 63% (CIE1931)
  • Light SourceWLED [8S2P] , 70K hours , With LED Driver
  • Weight870g (Typ.)
  • Designed For450CD/M2 20 Pin Industrial LCD Display 1024*768 Pixels CLAA150XQ01CW CPT 15" 0
  • Frame Rate60Hz
  • Touch PanelWithout
  • Interface Type
  • 20 pins LVDS (1 ch, 8-bit) , Connector
  • Power Supply
  • 3.3V (Typ.)
  • Environment
  • Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C
  • 450CD/M2 20 Pin Industrial LCD Display 1024*768 Pixels CLAA150XQ01CW CPT 15" 1
