High Brighness Industrial Touch Screen Display 10.4" 1024*768 20 Pin TCG104XGLPAPNN-AN40

We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

High Brighness Industrial Touch Screen Display 10.4" 1024*768 20 Pin TCG104XGLPAPNN-AN40

China High Brighness Industrial Touch Screen Display 10.4" 1024*768 20 Pin TCG104XGLPAPNN-AN40 supplier

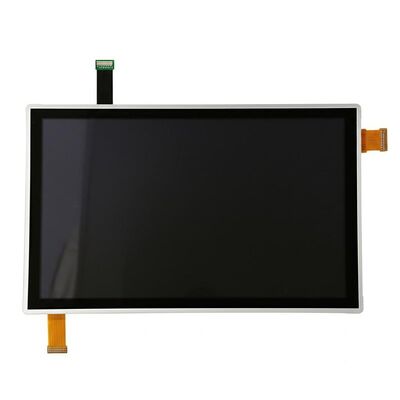

Large Image :  High Brighness Industrial Touch Screen Display 10.4" 1024*768 20 Pin TCG104XGLPAPNN-AN40

Product Details:

Place of Origin: JAPAN
Brand Name: kyocera
Certification: Rohs,CE,FCC
Model Number: TCG104XGLPAPNN-AN40

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Contact Now
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Oled Color: 16.7m Colors
Model: WLED Style: Wide Screen High Resolution 1024*768
Brightness: 1300cd Connector: 20PIN
Contrast Ratio: 700:1 Working Time: 30k Hours

Manufacturer

Kyocera

Model Name

TCG104XGLPAPNN-AN40

Screen Size

10.4 inch

Screen Type

LCM, a-Si TFT-LCD

Pixel Number

1024(RGB)×768 (XGA)

Arrangement

RGB Vertical Stripe

Active Area(mm)

210.4 × 157.8 (H×V)

Outline(mm)

230 × 180.2 × 11 (H×V×D)

Bezel Area(mm)

215.4 × 161.8 (H×V)

Treatment

Antiglare

Luminance

1300 cd/m² (Typ.)

Contrast Ratio

700 : 1 (Typ.) (TM)

Viewing Angle

85/85/85/85 (Typ.)(CR≥10)

Response

18/12 (Typ.)(Tr/Td) ms

Good View at

Symmetry

Work Mode

AWV, Normally Black, Transmissive

Color Depth

262K/16.7M 51% (CIE1931)

Backlight

WLED , 70K hours , With LED Driver

Mass

480g (Typ.)

Used for

High Brighness Industrial Touch Screen Display 10.4" 1024*768 20 Pin TCG104XGLPAPNN-AN40 High Brighness Industrial Touch Screen Display 10.4" 1024*768 20 Pin TCG104XGLPAPNN-AN40

Refresh Rate

60Hz

Touchscreen

Without

Signal Type

LVDS (1 ch, 6/8-bit) , Connector , 20 pins

Voltage Supply

3.3V (Typ.)

Max. Ratings

Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C



High Brighness Industrial Touch Screen Display 10.4" 1024*768 20 Pin TCG104XGLPAPNN-AN40



Kyocera Display Corporation (hereafter called Kyocera) TCG104XGLPAPNN-AN40 is a 10.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by einklcd in the following: Antiglare Surface, 6/8 bit Selectable, Wide Viewing Angle, Landscape type, Wide Temperature, Ultra High Brightness, White LED Backlight, Lamp life ≥ 70K hours . Based on its features, einklcd recommend that this model be applied to Industrial, Outdoor High Brightness etc. According to the information stored in einklcd this model mass production on Q2, 2015, Now this model is in production. We inputted this model's specification on Oct 15 2015 for the first time, and the latest update on Jul 4 2019. If you want to embed TCG104XGLPAPNN-AN40 LCM in your future product, einklcd strongly recommend that you should contact with Kyocera or it's distributor to learn lateast production and specification detail. The TCG104XGLPAPNN-AN40 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
