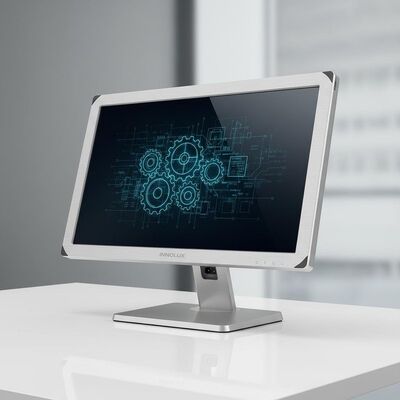

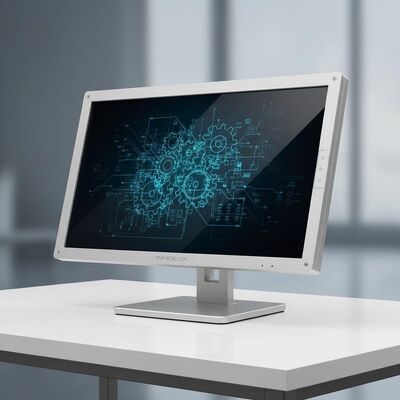

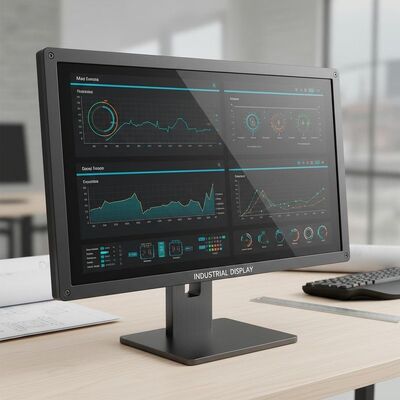

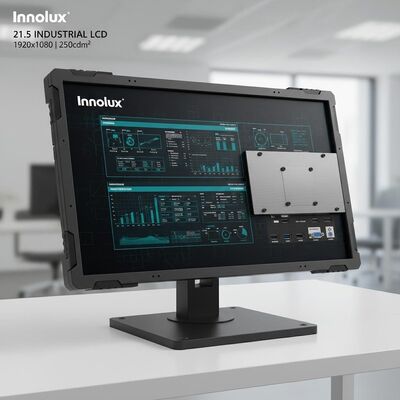

Innolux Industrial Touch Screen Monitor 21.5 Inch Desktop M215HGE-L211920*1080 Pixels

We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

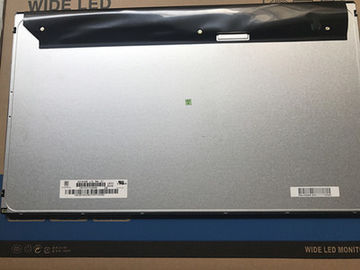

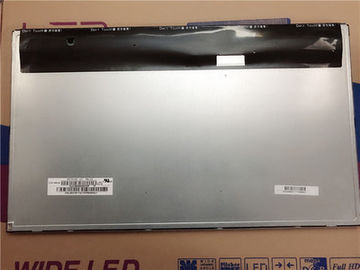

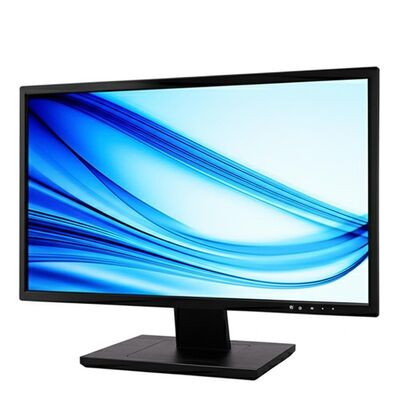

Innolux Industrial Touch Screen Monitor 21.5 Inch Desktop M215HGE-L211920*1080 Pixels

China Innolux Industrial Touch Screen Monitor 21.5 Inch Desktop M215HGE-L211920*1080 Pixels supplier
Innolux Industrial Touch Screen Monitor 21.5 Inch Desktop M215HGE-L211920*1080 Pixels supplier Innolux Industrial Touch Screen Monitor 21.5 Inch Desktop M215HGE-L211920*1080 Pixels supplier Innolux Industrial Touch Screen Monitor 21.5 Inch Desktop M215HGE-L211920*1080 Pixels supplier

Large Image :  Innolux Industrial Touch Screen Monitor 21.5 Inch Desktop M215HGE-L211920*1080 Pixels

Product Details:

Place of Origin: Taiwan
Brand Name: innolux
Certification: Rohs,CE,FCC

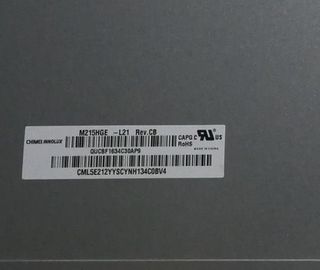

Model Number: M215HGE-L21

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Contact Now
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Oled Color: 16.2m Colors
Model: WLED Style: Wide Screen High Resolution 1920*1080
Brightness: 250cd Connector: 30pin
Contrast Ratio: 1000:1 Working Life: 40K Hours

  • Brand

    Chimei Innolux

    Model

    M215HGE-L21

    Diagonal Size

    21.5 inch

    Type

    a-Si TFT-LCD, LCM

    Pixel Format

    1920(RGB)×1080 [FHD]

    Configuration

    RGB Vertical Stripe

    Active Area

    476.64(H)×268.11(V) mm

    Outline Dim.

    495.6(H)×292.2(V) ×11.5(D) mm

    Bezel Area

    479.8(H)×271.3(V) mm

    Treatment

    Antiglare (Haze 25%), Hard coating (3H)

    Luminance

    250 cd/m² (Min.)

    Contrast Ratio

    1000:1 (Typ.) (TM)

    View Direction

    6 o'clock

    Response Time

    1.5/3.5 (Typ.)(Tr/Td)

    Viewing Angle

    85/85/80/80 (Typ.)(CR≥10)

    Operating Mode

    TN, Normally White, Transmissive

    Support Color

    16.7M 72% (CIE1931)

    Light Source

    WLED [11S4P] , 40K hours , W/O Driver

    Weight

    1.91/2.10Kgs (Typ./Max.)

    Designed For

    Innolux Industrial Touch Screen Monitor 21.5 Inch Desktop M215HGE-L211920*1080 Pixels Innolux Industrial Touch Screen Monitor 21.5 Inch Desktop M215HGE-L211920*1080 Pixels

    Frame Rate

    60Hz

    Touch Panel

    Without

    Interface Type

    30 pins LVDS (2 ch, 8-bit) , Connector

    Power Supply

    5.0V (Typ.)

    Environment

    Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Innolux Industrial Touch Screen Monitor 21.5 Inch Desktop M215HGE-L211920*1080 PixelsInnolux Industrial Touch Screen Monitor 21.5 Inch Desktop M215HGE-L211920*1080 Pixels

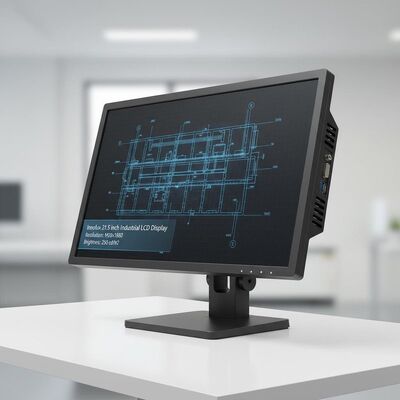

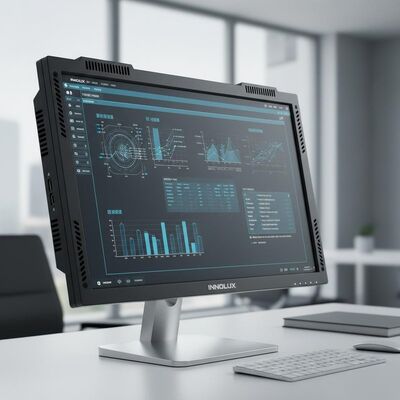

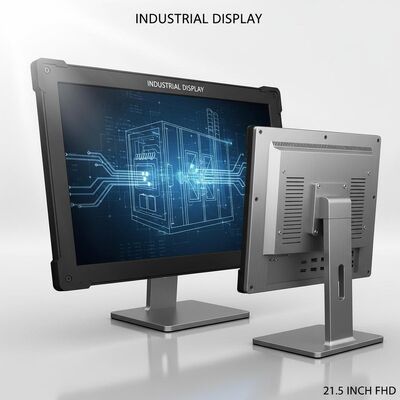

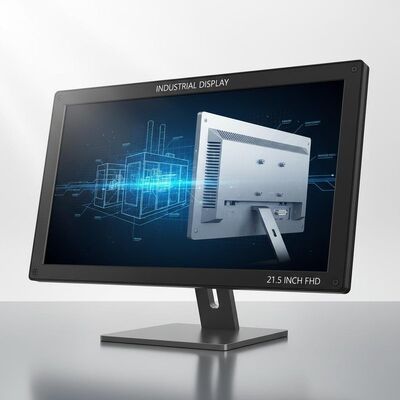

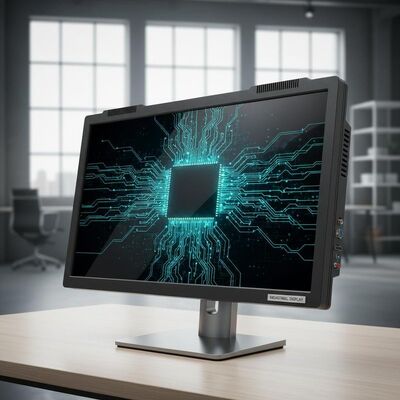

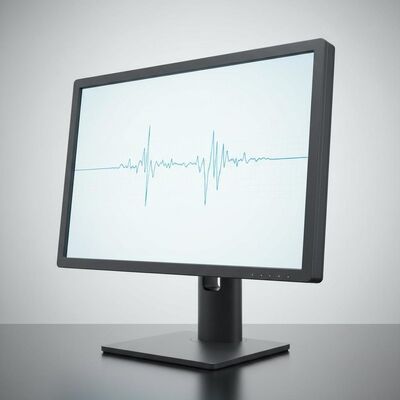

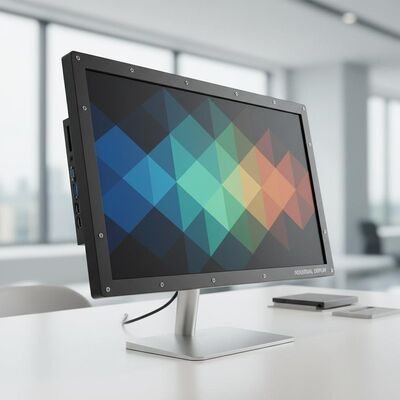

                                                    It's 250cd/m2  Innolux 21.5nch lcd MODEL for industrial ,Desktop computer use.

                  All our LCD LED screen monitor module panel products will be full test one by one before sending .
