LG 23" Widescreen LCD Computer Monitors 250CD/M2 LM230WF7-SSB3 1920*1080 Pixels

Customer Reviews
We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

LG 23" Widescreen LCD Computer Monitors 250CD/M2 LM230WF7-SSB3 1920*1080 Pixels

LG 23" Widescreen LCD Computer Monitors 250CD/M2 LM230WF7-SSB3 1920*1080 Pixels
LG 23" Widescreen LCD Computer Monitors 250CD/M2 LM230WF7-SSB3 1920*1080 Pixels LG 23" Widescreen LCD Computer Monitors 250CD/M2 LM230WF7-SSB3 1920*1080 Pixels LG 23" Widescreen LCD Computer Monitors 250CD/M2 LM230WF7-SSB3 1920*1080 Pixels

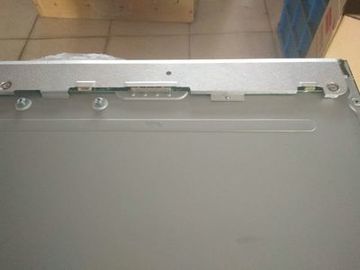

Large Image :  LG 23" Widescreen LCD Computer Monitors 250CD/M2 LM230WF7-SSB3 1920*1080 Pixels

Product Details:
Place of Origin: Korea
Brand Name: LG
Certification: Rohs,CE,FCC
Model Number: LM230WF7-SSB3
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week

LG 23" Widescreen LCD Computer Monitors 250CD/M2 LM230WF7-SSB3 1920*1080 Pixels

Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Oled Color: 16.7m Colors
Model: WLED Style: Wide Screen High Resolution 1920*1080
Brightness: 250cd Connector: 30
Contrast Ratio: 1000:1 Working Time: 30k Hours
High Light:

touch screen computer monitor

,

high resolution touch screen monitor

  • Panel Brand LG Display Panel Model LM230WF7-SSB3
    Panel Size 23.0" Panel Type a-Si TFT-LCD , LCM
    Resolution 1920(RGB)×1080 , FHD Pixel Format RGB Vertical Stripe
    Display Area 509.184(W)×286.416(H) mm Bezel Opening -
    Brightness - Contrast Ratio 1000:1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10)  Display Mode IPS, Normally Black, Transmissive
    Best View on Symmetry Response Time 14 (Typ.)(G to G)
    Display Colors 16.7M 72% (CIE1931) Lamp Type WLED
    Frequency 60Hz  Touch Screen In-Cell Touch
    Panel Weight - Application
    Signal Interface LVDS (2 ch, 8-bit) , 30 pins , Connector
    Input Voltage 5.0V (Typ.)
    Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C



    LG 23" Widescreen LCD Computer Monitors 250CD/M2 LM230WF7-SSB3 1920*1080 Pixels 0LG 23" Widescreen LCD Computer Monitors 250CD/M2 LM230WF7-SSB3 1920*1080 Pixels 1LG 23" Widescreen LCD Computer Monitors 250CD/M2 LM230WF7-SSB3 1920*1080 Pixels 2


    LG Display Co., Ltd. (hereafter called LG Display) LM230WF7-SSB3 (Alias: LM230WF7 (SS)(B3)) is a 23.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, touchscreen In-Cell Touch. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: High Color Gamut, Wide Viewing Angle, Landscape type, White LED Backlight, Wide Aspect Ratio, Signal Interface Position Reverse . Based on its features, einklcd recommend that this model be applied to Desktop Monitor etc. Now this model is discontinued. We inputted this model's specification on Jun 20 2018 for the first time, and the latest update on Apr 4 2019. If you want to embed LM230WF7-SSB3 LCM in your future product, einklcd strongly recommend that you should contact with LG Display or it's distributor to learn lateast production and specification detail. The LM230WF7-SSB3 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

                         All our LCD LED screen monitor module panel products will be full test one by one before sending .
