AUO Industrial Panel Lcd Touch Screen Panel 17.3'' 400cd/m2 Brightness G173HW01 V0 30 Pin

We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

AUO Industrial Panel Lcd Touch Screen Panel 17.3'' 400cd/m2 Brightness G173HW01 V0 30 Pin

China AUO Industrial Panel Lcd Touch Screen Panel 17.3'' 400cd/m2 Brightness G173HW01 V0 30 Pin supplier
AUO Industrial Panel Lcd Touch Screen Panel 17.3'' 400cd/m2 Brightness G173HW01 V0 30 Pin supplier AUO Industrial Panel Lcd Touch Screen Panel 17.3'' 400cd/m2 Brightness G173HW01 V0 30 Pin supplier

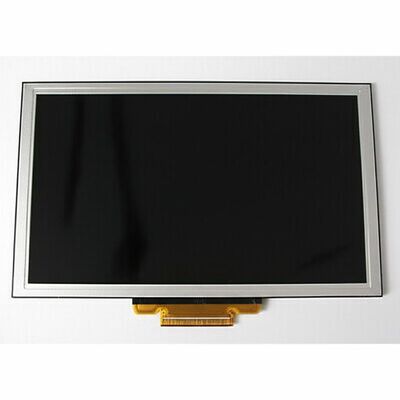

Large Image :  AUO Industrial Panel Lcd Touch Screen Panel 17.3'' 400cd/m2 Brightness G173HW01 V0 30 Pin

Product Details:

Place of Origin: China
Brand Name: AUO
Certification: Rohs,CE,FCC
Model Number: G173HW01 V0

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Contact Now
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Oled Color: 16.7M Colors
Model: WLED Style: Wide Screen High Resolution 1920*1080
Brightness: 400cd Connector: 30pin
Contrast Ratio: 600:1 Working Life: 50K Hours

  • Manufacturer

    AUO

    Model Name

    G173HW01 V0

    Screen Size

    17.3 inch

    Screen Type

    LCM, a-Si TFT-LCD

    Pixel Number

    1920(RGB)×1080 (FHD)

    Arrangement

    RGB Vertical Stripe

    Active Area(mm)

    381.888 × 214.812 (H×V)

    Outline(mm)

    403 × 240 × 13 (H×V×D)

    Bezel Area(mm)

    385.09 × 218.01 (H×V)

    Treatment

    Glare (Haze 0%), Hard coating (3H)

    Luminance

    400 cd/m² (Typ.)

    Contrast Ratio

    600 : 1 (Typ.) (TM)

    Viewing Angle

    80/80/60/80 (Typ.)(CR≥10)

    Response

    37/3 (Typ.)(Tr/Td) ms

    Good View at

    -

    Work Mode

    TN, Normally White, Transmissive

    Color Depth

    16.7M 72% (CIE1931)

    Backlight

    WLED , 50K hours , With LED Driver

    Mass

    1.08Kgs (Typ.)

    Used for

    AUO Industrial Panel Lcd Touch Screen Panel 17.3'' 400cd/m2 Brightness G173HW01 V0 30 Pin

    Refresh Rate

    60Hz

    Touchscreen

    Without

    Signal Type

    LVDS (2 ch, 8-bit) , Connector , 30 pins

    Voltage Supply

    3.3V (Typ.)

    Max. Ratings

    Storage Temp.: -30 ~ 75 °C Operating Temp.: 0 ~ 70 °C



    AUO Industrial Panel Lcd Touch Screen Panel 17.3'' 400cd/m2 Brightness G173HW01 V0 30 Pin



  • G173HW01 V0 (Alias: G173HW01 V.0) is a 17.3" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 70°C , a storage temperature range of -30 ~ 75°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by EINKLCD in the following: High Color Gamut, Glare Surface, Wide Viewing Angle, Landscape type, Lamp Repaceable, White LED Backlight, Lamp life ≥ 50K hours, Wide Aspect Ratio, Signal Interface Position Reverse . Based on its features, Einklcd recommend that this model be applied to Industrial etc. According to the information stored in Panelook this model mass production on Q1, 2012, Now this model is in production. We inputted this model's specification on Dec 19 2012 for the first time, and the latest update on Nov 8 2016. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail of G173HW01 V0. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

                                                    It's 400cd/m2  lcd MODEL for industrial field use.

                  All our LCD LED screen monitor module panel products will be full test one by one before sending .
