HITACHI 5.7 Inch Car LCD Display 320*240 Pixels NL3224BC35-20R 40 Pin 320cd/m2

We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

HITACHI 5.7 Inch Car LCD Display 320*240 Pixels NL3224BC35-20R 40 Pin 320cd/m2

China HITACHI 5.7 Inch Car LCD Display 320*240 Pixels NL3224BC35-20R 40 Pin 320cd/m2 supplier
HITACHI 5.7 Inch Car LCD Display 320*240 Pixels NL3224BC35-20R 40 Pin 320cd/m2 supplier HITACHI 5.7 Inch Car LCD Display 320*240 Pixels NL3224BC35-20R 40 Pin 320cd/m2 supplier HITACHI 5.7 Inch Car LCD Display 320*240 Pixels NL3224BC35-20R 40 Pin 320cd/m2 supplier

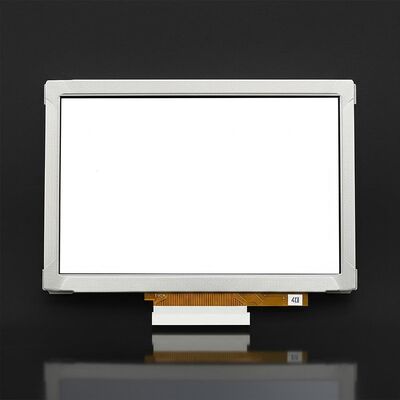

Large Image :  HITACHI 5.7 Inch Car LCD Display 320*240 Pixels NL3224BC35-20R 40 Pin 320cd/m2

Product Details:

Place of Origin: KOREA
Brand Name: hitachi
Certification: Rohs,CE,FCC
Model Number: TX14D22VM1BPA

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Contact Now
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Oled Color: 262k Colors
Model: WLED Style: Wide Screen High Resolution 320*240
Brightness: 330cd Connector: 40pin
Contrast Ratio: 350:1 Working Life: 50K Hours

  • Panel Brand
    HITACHI
  • Panel Model
    TX14D22VM1BPA
  • Panel Size
    5.7"
  • Panel Type
    a-Si TFT-LCD, LCM
  • Resolution
    320(RGB)×240 , QVGA
  • Pixel Format
    RGB Vertical Stripe
  • Display Area
    115.2(W)×86.4(H) mm
  • Bezel Opening
    -
  • Outline Size
    131(W)×102.2(H) mm
  • Surface
    Antiglare
  • Brightness
    320 cd/m² (Typ.)
  • Contrast Ratio
    350:1 (Typ.) (TM)
  • Viewing Angle
    80/80/80/60 (Typ.)(CR≥5)
  • Display Mode
    TN, Normally White, Transmissive
  • Best View on
    12 o'clock
  • Response Time
    30 (Typ.)(Tr+Td)
  • Display Colors
    262K 50% (CIE1931)
  • Lamp Type
    3S5P WLED , 40K hours , Without Driver
  • Frequency
    60Hz
  • Touch Screen
    4-wire Resistive Touch, F/G
  • Panel Weight
    150g (Typ.)
  • Application
    HITACHI 5.7 Inch Car LCD Display 320*240 Pixels NL3224BC35-20R 40 Pin 320cd/m2
  • Signal Interface
  • CMOS (1 ch, 6-bit) , 40 pins , Connector
  • Input Voltage
  • 3.3V (Typ.)(VDD)
  • Environment
  • Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 3.0G (29.4 m/s²)

HITACHI 5.7 Inch Car LCD Display 320*240 Pixels NL3224BC35-20R 40 Pin 320cd/m2HITACHI 5.7 Inch Car LCD Display 320*240 Pixels NL3224BC35-20R 40 Pin 320cd/m2HITACHI 5.7 Inch Car LCD Display 320*240 Pixels NL3224BC35-20R 40 Pin 320cd/m2



TX14D22VM1BPA is a 5.7" diagonal a-Si TFT-LCD display panel product from Kaohsiung Hitachi Electronics Co., Ltd. (hereafter called HITACHI), with an integral WLED backlight system, without backlight driver, touchscreen 4-wire Resistive Touch, F/G. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 3.0G (29.4 m/s²). It's general features are summarized by einklcd in the following: Antiglare Surface, Wide Viewing Angle, Landscape type, With Touchscreen, White LED Backlight, U/D,L/R Reverse . Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q4, 2009 and last shippment on Q2, 2014, Now this model is discontinued. Einklcd strongly recommend that you should contact with HITACHI or it's agent to learn lateast production and specification detail of TX14D22VM1BPA. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.



                  All our LCD LED screen monitor module panel products will be full test one by one before sending .
