Innolux 15 Inch Industrial LCD Display Model G150XNE-L01 1024*768 Pixels 20 Pin

We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

Innolux 15 Inch Industrial LCD Display Model G150XNE-L01 1024*768 Pixels 20 Pin

China Innolux 15 Inch Industrial LCD Display Model G150XNE-L01 1024*768 Pixels 20 Pin supplier
Innolux 15 Inch Industrial LCD Display Model G150XNE-L01 1024*768 Pixels 20 Pin supplier Innolux 15 Inch Industrial LCD Display Model G150XNE-L01 1024*768 Pixels 20 Pin supplier Innolux 15 Inch Industrial LCD Display Model G150XNE-L01 1024*768 Pixels 20 Pin supplier

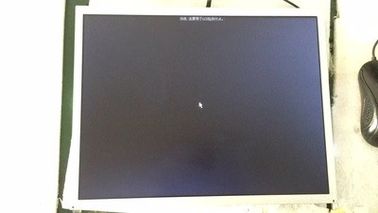

Large Image :  Innolux 15 Inch Industrial LCD Display Model G150XNE-L01 1024*768 Pixels 20 Pin

Product Details:

Place of Origin: KOREA
Brand Name: innolux
Certification: Rohs,CE,FCC
Model Number: G150XNE-L01

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Contact Now
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Oled Color: 16.7M Colors
Model: WLED Style: Wide Screen High Resolution 1024*768
Brightness: 500cd Connector: 20pin
Contrast Ratio: 2500:1 Working Life: 70K Hours

Panel Brand Innolux Panel Model G150XNE-L01
Panel Size 15.0" Panel Type a-Si TFT-LCD , LCM
Resolution 1024(RGB)×768 , XGA Pixel Format RGB Vertical Stripe
Display Area 304.128(W)×228.096(H) mm Bezel Opening 307.4(W)×231.3(H) mm
Outline Size 326.5(W)×253.5(H) ×9.6(D) mm Surface Antiglare, Hard coating (3H)
Brightness 500 cd/m² (Typ.) Contrast Ratio 2500:1 (Typ.) (TM)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10)  Display Mode NPVA, Normally Black, Transmissive
Best View on Symmetry Response Time 13/5 (Typ.)(Tr/Td)
Display Colors 262K/16.7M 72% (CIE1931) Lamp Type WLED , 70K hours , With LED Driver
Frequency 60Hz  Touch Screen Without
Panel Weight 0.97/1.00Kgs (Typ./Max.) Application
Signal Interface LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 85 °C



Innolux 15 Inch Industrial LCD Display Model G150XNE-L01 1024*768 Pixels 20 PinInnolux 15 Inch Industrial LCD Display Model G150XNE-L01 1024*768 Pixels 20 Pin

                         All our LCD LED screen monitor module panel products will be full test one by one before sending .
