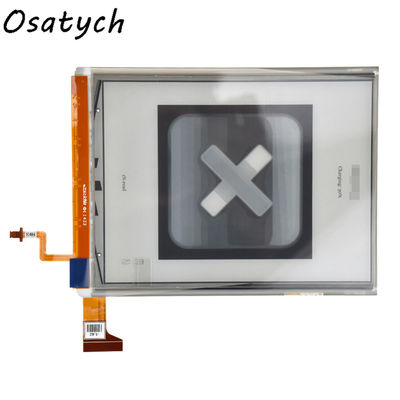

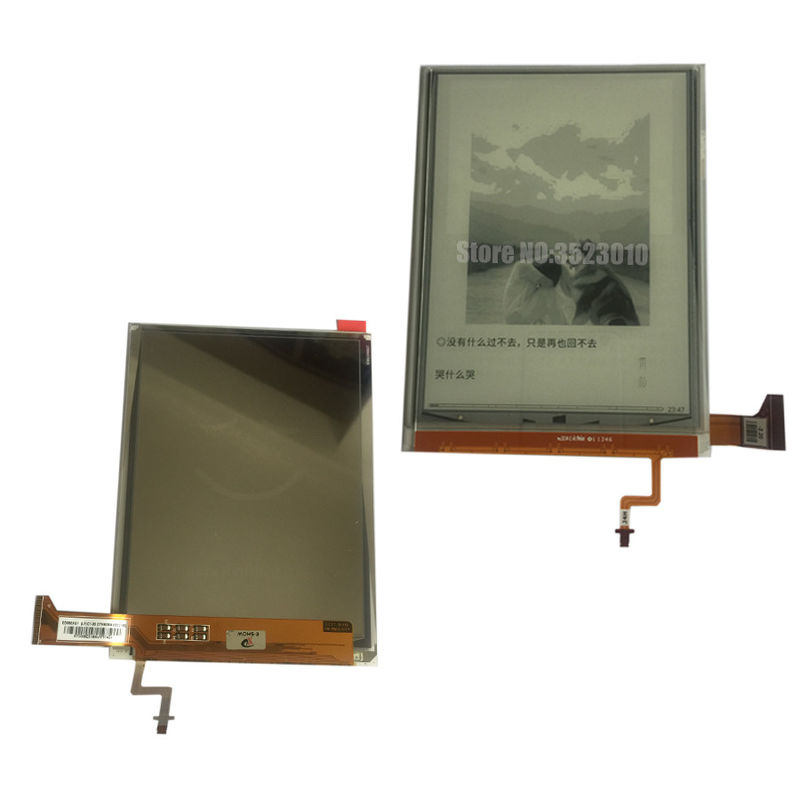

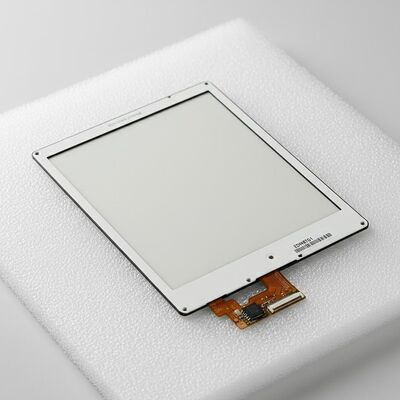

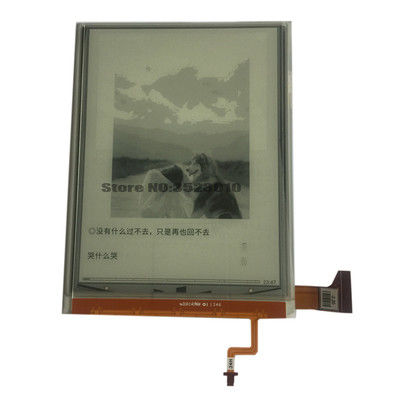

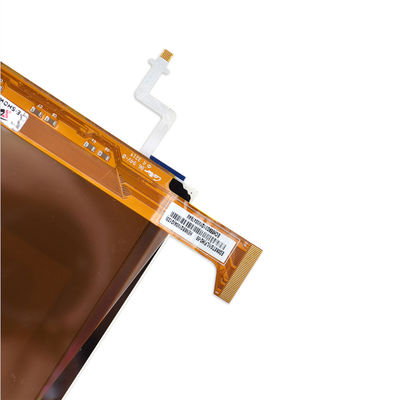

EPD Model ED068TG1 E Ink Display Panel LF LCD Screen Backlit For KOBO Aura HD Reader

Panel Brand

E Ink

Panel Model

ED068TG1

Panel Size

6.8 inch

Panel Type

EPD, EPD

Resolution

1080×1440

Pixel Format

Rectangle

Display Area

90.58(W)×122.368(H) mm

Bezel Opening

-

Outline Size

101.8(W)×138.4(H) mm

Surface

-

Viewing Angle

-

Display Mode

Reflective

Best View on

-

Response Time

-

Display Colors

Grayscale

Lamp Type

No B/L

Frequency

-

Touch Screen

Without

Panel Weight

TBD

Application

Environment

Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 70 °C

The ED068TG1 is a 6.8 inch diagonal EPD display panel product from E Ink Holdings Inc. (hereafter called E Ink), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -25 ~ 70°C . It's general features are summarized by einklcd in the following: Landscape / Portrait, Reflective, WLED Backlight, Matte , Carta 1.2 E Ink Film, Glass Backplane, 16 greysacle. Based on its features, einklcd recommend that this model be applied to E-Book Reader etc. According to the information stored in einklcd this model mass production on Q4, 2015, Now this model is in production.We inputted this model's specification on Oct 13 2017 for the first time, and the latest update on Mar 28 2019. If you want to embed ED068TG1 EPD in your future product, einklcd strongly recommend that you should contact with E Ink or it's agent to learn lateast production and specification detail. The ED068TG1 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making

This is the Origianl verion with touch panel only.We also have the version with backlight and touch panel version for kindle and pocketbook ebook ready .
