Medical / Industrial LCD Display G185HAN01.0 Full Viewing Angle 18.5 Inch Size

We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

Medical / Industrial LCD Display G185HAN01.0 Full Viewing Angle 18.5 Inch Size

China Medical / Industrial LCD Display G185HAN01.0 Full Viewing Angle 18.5 Inch Size supplier
Medical / Industrial LCD Display G185HAN01.0 Full Viewing Angle 18.5 Inch Size supplier Medical / Industrial LCD Display G185HAN01.0 Full Viewing Angle 18.5 Inch Size supplier Medical / Industrial LCD Display G185HAN01.0 Full Viewing Angle 18.5 Inch Size supplier Medical / Industrial LCD Display G185HAN01.0 Full Viewing Angle 18.5 Inch Size supplier Medical / Industrial LCD Display G185HAN01.0 Full Viewing Angle 18.5 Inch Size supplier

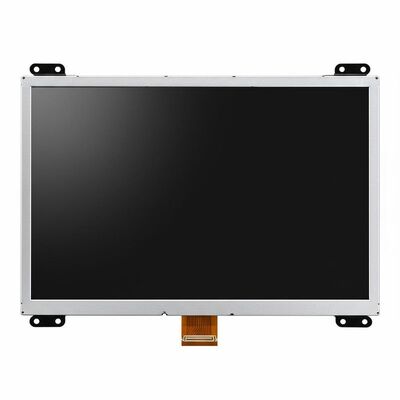

Large Image :  Medical / Industrial LCD Display G185HAN01.0 Full Viewing Angle 18.5 Inch Size

Product Details:

Place of Origin: China
Brand Name: auo
Certification: Rohs,CE,FCC
Model Number: G185HAN01.0

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Contact Now
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Brightness: 350ccd/m2
Resolution: 1920*1080pixels Contrast Ratio: 1000:1
Color: 16.7M Working Life: 50k Hours
Connector: 30P Touch Panel: Without

AUO industrial medical lcd 18.5inch LCD display monitor G185HAN01.0 30PIN Full viewing angle FHD 1920*1080pixels



Panel Brand

AUO

Panel Model

G185HAN01.0

Panel Size

18.5 inch

Panel Type

a-Si TFT-LCD, LCM

Resolution

1920(RGB)×1080 , FHD

Pixel Format

RGB Vertical Stripe

Display Area

409.8(W)×230.4(H) mm

Bezel Opening

410.96(W)×232.0(H) mm

Outline Size

430.4(W)×254.6(H) ×12.5(D) mm

Surface

Antiglare, Hard coating (3H)

Brightness

350 cd/m² (Typ.)

Contrast Ratio

1000:1 (Typ.) (TM)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Display Mode

AHVA, Normally Black, Transmissive

Best View on

Symmetry

Response Time

10/10 (Typ.)(Tr/Td)

Display Colors

16.7M 99% (sRGB)

Lamp Type

WLED , 50K hours , With LED Driver

Frequency

60Hz

Touch Screen

Without

Panel Weight

1.20Kgs (Typ.)

Application

Medical / Industrial LCD Display G185HAN01.0 Full Viewing Angle 18.5 Inch Size Medical / Industrial LCD Display G185HAN01.0 Full Viewing Angle 18.5 Inch Size

Signal Interface

LVDS (2 ch, 8-bit) , 30 pins , Connector

Input Voltage

5.0V (Typ.)

Environment

Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 70 °C

Medical / Industrial LCD Display G185HAN01.0 Full Viewing Angle 18.5 Inch SizeMedical / Industrial LCD Display G185HAN01.0 Full Viewing Angle 18.5 Inch SizeMedical / Industrial LCD Display G185HAN01.0 Full Viewing Angle 18.5 Inch SizeMedical / Industrial LCD Display G185HAN01.0 Full Viewing Angle 18.5 Inch SizeMedical / Industrial LCD Display G185HAN01.0 Full Viewing Angle 18.5 Inch Size



  • All Origianl product will be send to customer after full test one by one.
  • Spec details can be send to you via email,please contact us.
