1920 * 1080 Pixels Large Touch Screen Monitor , 22 Inch Touch Screen Desktop Monitor

We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

1920 * 1080 Pixels Large Touch Screen Monitor , 22 Inch Touch Screen Desktop Monitor

China 1920 * 1080 Pixels Large Touch Screen Monitor , 22 Inch Touch Screen Desktop Monitor supplier
1920 * 1080 Pixels Large Touch Screen Monitor , 22 Inch Touch Screen Desktop Monitor supplier 1920 * 1080 Pixels Large Touch Screen Monitor , 22 Inch Touch Screen Desktop Monitor supplier 1920 * 1080 Pixels Large Touch Screen Monitor , 22 Inch Touch Screen Desktop Monitor supplier 1920 * 1080 Pixels Large Touch Screen Monitor , 22 Inch Touch Screen Desktop Monitor supplier

Large Image :  1920 * 1080 Pixels Large Touch Screen Monitor , 22 Inch Touch Screen Desktop Monitor

Product Details:

Place of Origin: China
Brand Name: LG
Certification: Rohs,CE,FCC
Model Number: LM215WF3-SLK1

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Contact Now
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Brightness: 250CCD/M2
Resolution: 1920*1080pixels Contrast Ratio: 1000:1
Color: 16.7M Working Life: 30K Hours
Connector: 30P

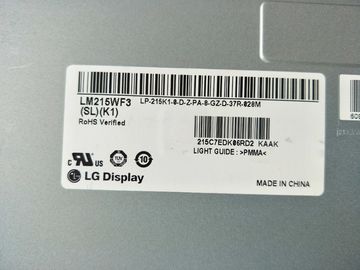

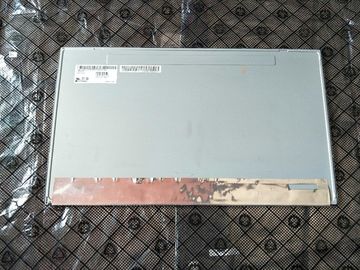

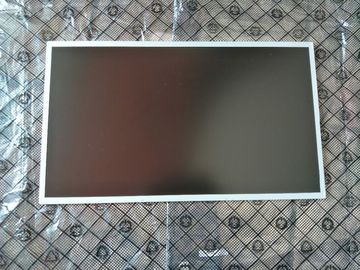

 Brand new 22inch LG-Philip LCD monitorLM215WF3-SLK1 high resolution 1920*1080pixels 30PIN for desktop lcd replacement



Brand

LG Display

Model

LM215WF3-SLK1

Diagonal Size

21.5 inch

Type

a-Si TFT-LCD, LCM



1920 * 1080 Pixels Large Touch Screen Monitor , 22 Inch Touch Screen Desktop Monitor1920 * 1080 Pixels Large Touch Screen Monitor , 22 Inch Touch Screen Desktop Monitor1920 * 1080 Pixels Large Touch Screen Monitor , 22 Inch Touch Screen Desktop Monitor1920 * 1080 Pixels Large Touch Screen Monitor , 22 Inch Touch Screen Desktop Monitor

  •

    Pixel Format

    1920(RGB)×1080 [FHD]

    Configuration

    RGB Vertical Stripe

    Active Area

    476.064(H)×267.786(V) mm

    Outline Dim.

    497.6(H)×292.2(V) ×11(D) mm

    Bezel Area

    479.8(H)×271.3(V) mm

    Treatment

    Antiglare, Hard coating (3H)

    Luminance

    250 cd/m² (Typ.)

    Contrast Ratio

    1000:1 (Typ.) (TM)

    View Direction

    Symmetry

    Response Time

    14 (Typ.)(G to G)

    Viewing Angle

    89/89/89/89 (Typ.)(CR≥10)

    Operating Mode

    IPS, Normally Black, Transmissive

    Support Color

    16.7M 72% (CIE1931)

    Light Source

    WLED [16S2P] , 30K hours , W/O Driver

    Weight

    1.92/2.02Kgs (Typ./Max.)

    Designed For

    1920 * 1080 Pixels Large Touch Screen Monitor , 22 Inch Touch Screen Desktop Monitor 1920 * 1080 Pixels Large Touch Screen Monitor , 22 Inch Touch Screen Desktop Monitor 1920 * 1080 Pixels Large Touch Screen Monitor , 22 Inch Touch Screen Desktop Monitor

    Frame Rate

    60Hz

    Touch Panel

    Without

    Interface Type

    30 pins LVDS (2 ch, 8-bit) , Connector

    Power Supply

    5.0V (Typ.)

    Environment

    Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

  •
  • All Origianl product will be send to customer after full test one by one.
  • Spec details can be send to you via email,please contact us.
