LM300WQ6 SLA1 30 Inch Lcd Screen , Hard Coating 350CD 92P Lcd Tv Monitor

We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

LM300WQ6 SLA1 30 Inch Lcd Screen , Hard Coating 350CD 92P Lcd Tv Monitor

China LM300WQ6 SLA1 30 Inch Lcd Screen , Hard Coating 350CD 92P Lcd Tv Monitor  supplier
LM300WQ6 SLA1 30 Inch Lcd Screen , Hard Coating 350CD 92P Lcd Tv Monitor  supplier LM300WQ6 SLA1 30 Inch Lcd Screen , Hard Coating 350CD 92P Lcd Tv Monitor  supplier LM300WQ6 SLA1 30 Inch Lcd Screen , Hard Coating 350CD 92P Lcd Tv Monitor  supplier

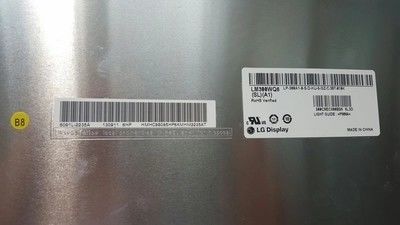

Large Image :  LM300WQ6 SLA1 30 Inch Lcd Screen , Hard Coating 350CD 92P Lcd Tv Monitor

Product Details:

Place of Origin: China
Brand Name: LG
Certification: Rohs,CE,FCC
Model Number: LM300WQ6-SLA1

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Contact Now
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing

LG 30Inch Brand New Original LCD Panel LM300WQ6-SLA1 2560*1600 Pixels 350CD 92P



Brand

LG Display

Model

LM300WQ6-SLA1

Diagonal Size

30.0 inch

Type

a-Si TFT-LCD, LCM

Pixel Format

2560(RGB)×1600 [WQXGA]

Configuration

RGB Vertical Stripe

Active Area

641.28(H)×400.8(V) mm

Outline Dim.

677.3(H)×436.8(V) ×18.5(D) mm

Bezel Area

646.3(H)×405.8(V) mm

Treatment

Antiglare, Hard coating (3H)

Luminance

350 cd/m² (Typ.)

Contrast Ratio

1000:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

7/7 (Typ.)(Tr/Td); 6 (Typ.)(G to G)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10) LM300WQ6 SLA1 30 Inch Lcd Screen , Hard Coating 350CD 92P Lcd Tv Monitor

Operating Mode

AH-IPS, Normally Black, Transmissive

Support Color

1.07B 104% (CIE1931)

Light Source

GB-r LED , 30K hours , W/O Driver

Weight

4.15/4.36Kgs (Typ./Max.)

Designed For

LM300WQ6 SLA1 30 Inch Lcd Screen , Hard Coating 350CD 92P Lcd Tv Monitor

Frame Rate

60Hz

Touch Panel

Without

Interface Type

92 pins LVDS (4 ch, 10-bit) , Connector

Power Supply

12.0V (Typ.)

Environment

Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C





         All Origianl product will be send to customer after full test one by one.

  • Spec details can be send to you via email,please contact us.
