Bar Type Large Screen Monitor , High Brightness HD 16.7M Colors Led Display Screen

We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

Bar Type Large Screen Monitor , High Brightness HD 16.7M Colors Led Display Screen

China Bar Type Large Screen Monitor , High Brightness HD 16.7M Colors Led Display Screen  supplier
Bar Type Large Screen Monitor , High Brightness HD 16.7M Colors Led Display Screen  supplier Bar Type Large Screen Monitor , High Brightness HD 16.7M Colors Led Display Screen  supplier Bar Type Large Screen Monitor , High Brightness HD 16.7M Colors Led Display Screen  supplier Bar Type Large Screen Monitor , High Brightness HD 16.7M Colors Led Display Screen  supplier Bar Type Large Screen Monitor , High Brightness HD 16.7M Colors Led Display Screen  supplier Bar Type Large Screen Monitor , High Brightness HD 16.7M Colors Led Display Screen  supplier

Large Image :  Bar Type Large Screen Monitor , High Brightness HD 16.7M Colors Led Display Screen

Product Details:

Place of Origin: China
Brand Name: BOE
Certification: Rohs,CE,FCC
Model Number: DV480FBM-N00

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Contact Now
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Led Color: 16.7M
Model: WLED,LCD Style: Wide Screen High Resolution 1920*1080pixels
Resolution: 3840*720 Brightness: 1000CCD/M2
Connector: 51P Working Life: 50k Hours

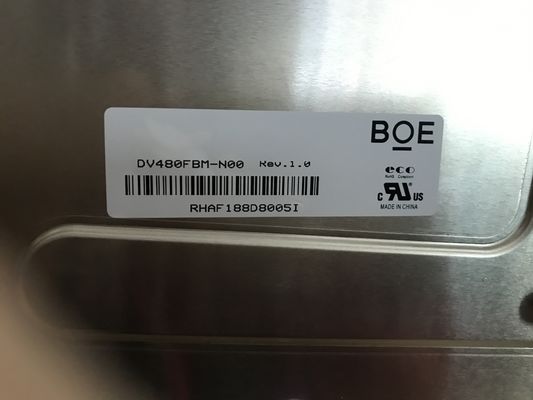

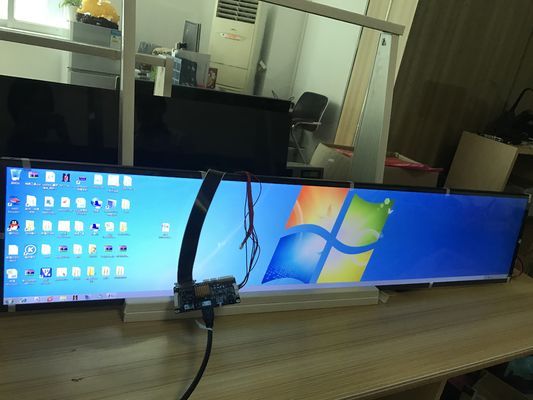

BOE bar Screen module 48" DV480FBM-N00 high brightness 1000CCD/M2 HD 3840*720ixels for advisement player 16.7M colors





Manufacturer BOE Model Name DV480FBM-N00
Screen Size 48 inch Screen Type LCM , a-Si TFT-LCD
Pixel Number 3840(RGB)×720 Arrangement RGB Vertical Stripe
Active Area(mm) 1194.05 × 223.884 (H×V) Outline(mm) 1217.9 × 248.2 × 30.58 (H×V×D)
Bezel Area(mm) - Treatment Antiglare (Haze 1%), Hard coating (3H)
Luminance 1000 cd/m² (Typ.) Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)  Response 16 (Typ.)(Tr+Td) ms
Good View at Symmetry Work Mode ADS, Normally Black, Transmissive
Color Depth 16.7M 72% (CIE1931) Backlight WLED , 50K hours , With LED Driver
Mass 3.7Kgs (Typ.) Used for
Refresh Rate 60Hz  Touchscreen Without
Signal Type V-by-One 8 lane , Connector , 51 pins
Voltage Supply 12.0V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C



Bar Type Large Screen Monitor , High Brightness HD 16.7M Colors Led Display Screen Bar Type Large Screen Monitor , High Brightness HD 16.7M Colors Led Display Screen Bar Type Large Screen Monitor , High Brightness HD 16.7M Colors Led Display Screen Bar Type Large Screen Monitor , High Brightness HD 16.7M Colors Led Display Screen Bar Type Large Screen Monitor , High Brightness HD 16.7M Colors Led Display Screen Bar Type Large Screen Monitor , High Brightness HD 16.7M Colors Led Display Screen





                         All our LCD LED screen monitor module panel products will be full test one by one before sending .
