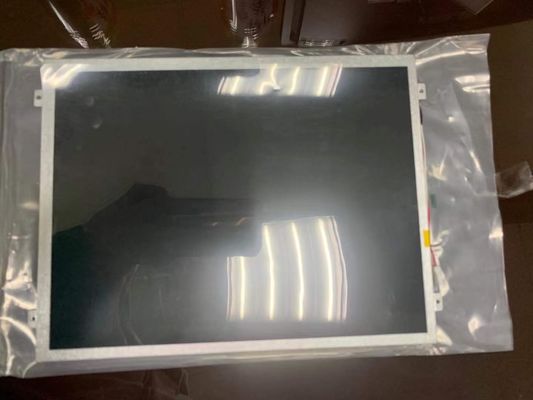

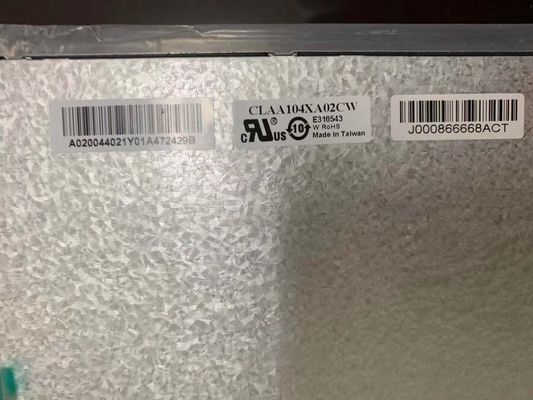

CPT 10.4inch industrial lcd display panel 30pin 220cd/m2 1024*768 123PPI CLAA104XA02CW

CPT 10.4inch industrial lcd display panel 30pin 220cd/m2 1024*768 123PPI  CLAA104XA02CW
CPT 10.4inch industrial lcd display panel 30pin 220cd/m2 1024*768 123PPI  CLAA104XA02CW CPT 10.4inch industrial lcd display panel 30pin 220cd/m2 1024*768 123PPI  CLAA104XA02CW CPT 10.4inch industrial lcd display panel 30pin 220cd/m2 1024*768 123PPI  CLAA104XA02CW CPT 10.4inch industrial lcd display panel 30pin 220cd/m2 1024*768 123PPI  CLAA104XA02CW CPT 10.4inch industrial lcd display panel 30pin 220cd/m2 1024*768 123PPI  CLAA104XA02CW

Large Image :  CPT 10.4inch industrial lcd display panel 30pin 220cd/m2 1024*768 123PPI CLAA104XA02CW

Product Details:
Place of Origin: China
Brand Name: CPT
Certification: Rohs,CE,FCC
Model Number: CLAA104XA02CW
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing
Resolution: 1024*768pixels 123ppi Style: 30PIN IPS
Brightness: 400CD/M2 Color: 262k
Contrast Ratio: 500 :1 Working Life: 30K Hours
Voltage Supply: 3.3V

CPT 10.4inch industrial lcd display panel 30pin 220cd/m2 1024*768 123PPI CLAA104XA02CW



The CLAA104XA02CW is a 10.4 inch diagonal a-Si TFT-LCD display panel product from Chunghwa Picture Tubes, LTD. (hereafter called CPT), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by einklcd in the following: WLED Backlight, Reverse I/F, Matte . Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q1, 2011, Now this model is discontinued. We inputted this model's specification on Apr 6 2013 for the first time, and the latest update on Feb 15 2019. If you want to embed CLAA104XA02CW LCM in your future product, Einklcd strongly recommend that you should contact with CPT or it's agent to learn lateast production and specification detail. The CLAA104XA02CW production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.



CPT 10.4inch industrial lcd display panel 30pin 220cd/m2 1024*768 123PPI  CLAA104XA02CW 0CPT 10.4inch industrial lcd display panel 30pin 220cd/m2 1024*768 123PPI  CLAA104XA02CW 1CPT 10.4inch industrial lcd display panel 30pin 220cd/m2 1024*768 123PPI  CLAA104XA02CW 2



  • Panel Brand
    CPT
  • Panel Model
    CLAA104XA02CW
  • Panel Size
    10.4"
  • Panel Type
    a-Si TFT-LCD, LCM
  • Resolution
    1024(RGB)×768, XGA, 123PPI
  • Pixel Format
    RGB Vertical Stripe
  • Display Area
    211.2(W)×158.4(H) mm
  • Bezel Opening
    213.2(W)×160.4(H) mm
  • Outline Size
    236(W)×174.3(H) ×7.4(D) mm
  • Surface
    Antiglare, Hard coating (3H)
  • Brightness
    400 cd/m² (Typ.)
  • Contrast Ratio
    500:1 (Typ.) (TM)
  • Viewing Angle
    70/70/60/80 (Typ.)(CR≥10)
  • Display Mode
    TN, Normally White, Transmissive
  • Best View on
    6 o'clock
  • Response Time
    25 (Typ.)(Tr+Td)
  • Display Colors
    262K 47% NTSC
  • Lamp Type
    3S13P WLED , 30K hours , Without Driver
  • Frequency
    60Hz
  • Touch Screen
    Without
  • Panel Weight
    385g
  • Application
    CPT 10.4inch industrial lcd display panel 30pin 220cd/m2 1024*768 123PPI  CLAA104XA02CW 3
  • Signal Interface
  • LVDS (1 ch, 6-bit) , 30 pins Connector
  • Input Voltage
  • 3.3V (Typ.)
  • Environment
  • Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
