Car LCD Display
Created with Pixso.

Chi Hsin Innolux 7 Inch Car LCD Display model LW700AT9009 with 800*480 Pixels 250cd/m² Brightness and 60 Pin Connector

Chi Hsin Innolux 7 Inch Car LCD Display model LW700AT9009 with 800*480 Pixels 250cd/m² Brightness and 60 Pin Connector

Chi Hsin Innolux 7 Inch Car LCD Display model LW700AT9009 with 800*480 Pixels 250cd/m² Brightness and 60 Pin Connector

Brand Name: Innolux
Model Number: LW700AT9009
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass Oled
Color:
16.2m Colors
Model:
XGA
Style:
Wide Screen High Resolution 320*240Pixels
Brightness:
250cd
Connector:
60
Contrast Ratio:
400:1
Working Time:
20k Hours
Packaging Details:
Industrial packing
Highlight:

lcd display screen

,

raspberry pi 7 touchscreen display

Product Description
Chi Hsin Innolux 7 Inch Car LCD Display
800×480 Pixels Panel LW700AT9009 with 250cd/m² Luminance
Product Overview
Chi Hsin 7-inch car LCD Display LW700AT9009 features 800×480 WVGA resolution, 250 cd/m² luminance, and 60-pin TTL interface. This automotive-grade display panel is designed for reliable performance in various applications.
Technical Specifications
Specification Details
Brand Chi Hsin
Diagonal Size 7.0 inch
Pixel Format 800(RGB)×480 [WVGA]
Active Area 152.4(H)×91.44(V) mm
Luminance 250 cd/m² (Typ.)
View Direction 6 o'clock
Viewing Angle 70/70/60/70 (Typ.)(CR≥10)
Support Color 16.7M 45% NTSC
Weight 122g
Frame Rate 60Hz
Model LW700AT9009
Type a-Si TFT-LCD, LCM
Configuration RGB Vertical Stripe
Outline Dimensions 165(H)×104.4(V)×5.5(D) mm
Treatment Antiglare
Contrast Ratio 400:1 (Typ.) (TM)
Response Time 5/15 (Typ.)(Tr/Td)
Operating Mode TN, Normally White, Transmissive
Light Source WLED [3S5P], 20K hours, W/O Driver
Touch Panel Without
Interface Type 60 pins TTL (1 ch, 8-bit), FPC
Power Supply 3.3/12.0/18.0/-7.0V (Typ.)(Vcc/AVDD/VGH/VGL)
Environment Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80°C
Key Features
  • 7.0 inch diagonal a-Si TFT-LCD display panel
  • Integral WLED backlight system (20,000 hours lifespan)
  • Wide operating temperature range (-20°C to 70°C)
  • Antiglare treatment for reduced reflections
  • 60-pin TTL interface with FPC connector
  • Compact and lightweight design (122g)
Recommended Applications
MP3 PMP, VOIP Phone, Digital Photo Frame, Portable DVD Player, and other automotive or portable electronic devices.
Important Note: This model entered mass production in Q2 2009 and is currently discontinued. For the latest production status and specification details, we strongly recommend contacting Chi Hsin Electronics Corp. or their authorized distributors before integrating this display into your product.
Product Images

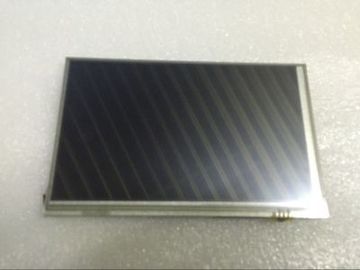

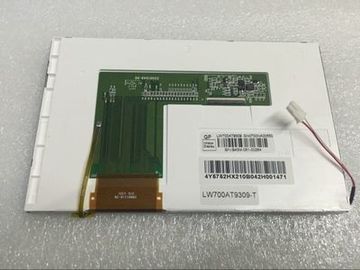

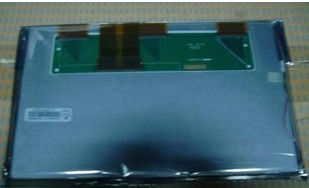

Chi Hsin Innolux 7 Inch Car LCD Display model LW700AT9009 with 800*480 Pixels 250cd/m² Brightness and 60 Pin Connector 0 Chi Hsin Innolux 7 Inch Car LCD Display model LW700AT9009 with 800*480 Pixels 250cd/m² Brightness and 60 Pin Connector 1 Chi Hsin Innolux 7 Inch Car LCD Display model LW700AT9009 with 800*480 Pixels 250cd/m² Brightness and 60 Pin Connector 2 Chi Hsin Innolux 7 Inch Car LCD Display model LW700AT9009 with 800*480 Pixels 250cd/m² Brightness and 60 Pin Connector 3
