8 Inch Car LCD Display with 800*480 Pixels 300cd/m2 Brightness and 60 Pin Connector

Name: 8 Inch Car LCD Display with 800*480 Pixels 300cd/m2 Brightness and 60 Pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LW800AT9001
Price: 30.00 USD
Availability: InStock

Brand Name:	CHIMEI
Model Number:	LW800AT9001
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

262K Colors

Model:

WVGA

Style:

Wide Screen High Resolution 800*480Pixels

Brightness:

300cd

Connector:

Contrast Ratio:

400:1

Working Time:

10k Hours

Packaging Details:

Industrial packing

Highlight:

300cd/m2 Car Lcd Display

117PPI Car Lcd Display

LW800AT9001

Product Description

60 Pin 8" 800*480 117PPI 300cd/m² Car LCD Display LW800AT9001

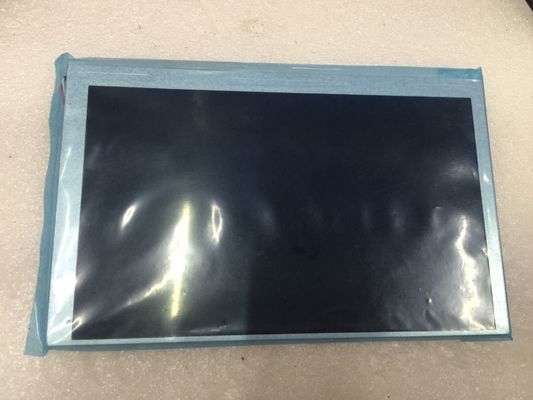

The LW800AT9001 is an 8.0-inch diagonal a-Si TFT-LCD display panel manufactured by Chi Hsin Electronics Corp., featuring an integral WLED backlight system designed for automotive and industrial applications.

Technical Specifications

Manufacturer	ChiHsin
Model Name	LW800AT9001
Screen Size	8.0 inch
Screen Type	LCM, a-Si TFT-LCD
Pixel Number	800(RGB)*480 (WVGA) 117PPI
Active Area	173.4 * 104.04 mm (H*V)
Outline Dimensions	192.8 * 119.4 mm (HVD)
Luminance	300 cd/m² (Typical)
Contrast Ratio	400:1 (Typical)
Viewing Angle	65/65/50/65 (Typical, CR≥10)
Response Time	5/15 ms (Typical, Tr/Td)
Color Depth	262K, 45% NTSC
Backlight	3S9P WLED, 10K hours, No Driver

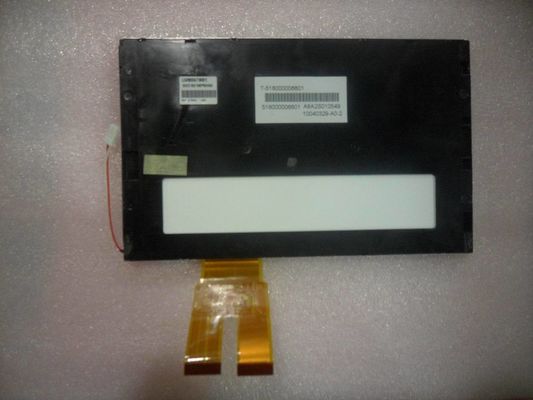

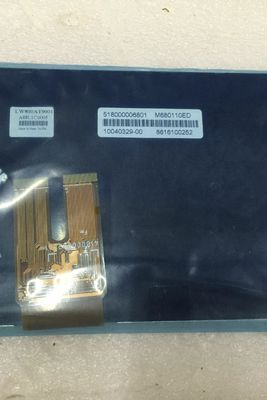

Signal Type	Parallel RGB (1 ch, 6-bit), 60 pins FPC
Voltage Supply	3.3/12/18/-7V (Typical)(VCC/AVDD/VGH/VGL)
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Mass	181g (Typical)

Key Features

8-inch TFT-LCD display with 800*480 WVGA resolution
High brightness 300 cd/m² for excellent visibility
WLED backlight system with 10,000 hours lifespan
60-pin FPC connector for parallel RGB interface
Wide operating temperature range (-20°C to 70°C)
TN technology with normally white, transmissive mode

Application Areas

This display model is suitable for various applications including automotive displays, digital photo frames, portable DVD players, and other industrial equipment requiring reliable LCD performance.

Important Note: This model entered mass production in Q2 2008 and is currently discontinued. We strongly recommend contacting ChiHsin or their authorized agents for the latest production status and specification details before integrating this display into your product.

Quality Assurance: All LCD products include a one-year warranty. Every unit undergoes comprehensive testing before delivery to ensure optimal performance and reliability.
