470cd/m² 19" 1280x1024 Sharp Lcd Monitor SXGA 86PPI LQ190E1LW61

We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

470cd/m² 19" 1280x1024 Sharp Lcd Monitor SXGA 86PPI LQ190E1LW61

470cd/m² 19" 1280x1024 Sharp Lcd Monitor SXGA 86PPI LQ190E1LW61
470cd/m² 19" 1280x1024 Sharp Lcd Monitor SXGA 86PPI LQ190E1LW61 470cd/m² 19" 1280x1024 Sharp Lcd Monitor SXGA 86PPI LQ190E1LW61 470cd/m² 19" 1280x1024 Sharp Lcd Monitor SXGA 86PPI LQ190E1LW61 470cd/m² 19" 1280x1024 Sharp Lcd Monitor SXGA 86PPI LQ190E1LW61

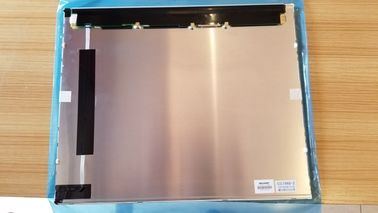

Large Image :  470cd/m² 19" 1280x1024 Sharp Lcd Monitor SXGA 86PPI LQ190E1LW61

Product Details:
Place of Origin: China
Brand Name: Sharp
Certification: Rohs,CE,FCC
Model Number: LQ190E1LW61
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation

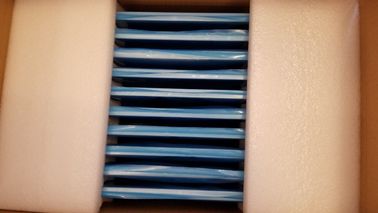

Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Oled Color: 16.7m Colors
Model: WLED Style: Wide Screen High Resolution 1280*1024
Brightness: 470cd Connector: 30PIN
Contrast Ratio: 1500:1 Working Time: 50k Hours
Input Voltage: 5.0 V Panel Weight: 1.3kg
High Light:

1280x1024 Sharp Lcd Monitor

,

470cd/m² Sharp Lcd Monitor

,

LQ190E1LW61

Sharp 19inch gaming lcd LQ190E1LW61 1280*1024pixels SXGA 86PPI 30 Pin Connector 470 cd/m² Brand new







Panel Brand
Sharp
Panel Model
LQ190E1LW61
Panel Size
19.0"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1280(RGB)×1024, SXGA, 86PPI
Pixel Format
RGB Vertical Stripe
Display Area
376.32(W)×301.056(H) mm
Bezel Opening
-
Outline Size
396(W)×323.5(H) ×12(D) mm
Surface
Antiglare (Haze 3%), Hard coating (2H)
Brightness
470 cd/m² (Typ.)
Contrast Ratio
1500:1 (Typ.) (TM)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Display Mode
ASV, Normally Black, Transmissive
Best View on
Symmetry
Response Time
35 (Typ.)(Tr+Td)
Display Colors
16.7M 90% NTSC
Lamp Type
WLED , 50K hours , With LED Driver
Frequency
60Hz
Touch Screen
Without
Panel Weight
1.30Kgs (Max.)
Application
470cd/m² 19" 1280x1024 Sharp Lcd Monitor SXGA 86PPI LQ190E1LW61 0
Signal Interface
LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage
5.0V (Typ.)
Environment
Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -25 ~ 60 °C

Sharp Corporation (hereafter called Sharp) LQ190E1LW61 is a 19.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 60°C , a storage temperature range of -25 ~ 60°C . It's general features are summarized by einklcd in the following: Wide Color Gamut, DCI-P3, sRGB, WLED Backlight, Life ≥ 50K hours, With LED Driver, Upside I/F, Matte . Based on its features, einklcd recommend that this model be applied to Gaming etc. According to the information stored in einklcd this model mass production on Q2, 2014, Now this model is in production. We inputted this model's specification on Apr 14 2015 for the first time, and the latest update on Sep 29 2018. If you want to embed LQ190E1LW61 LCM in your future product, einklcd strongly recommend that you should contact with Sharp or it's distributor to learn lateast production and specification detail. The LQ190E1LW61 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
