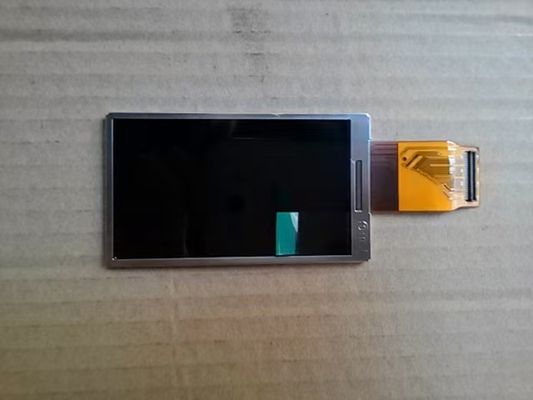

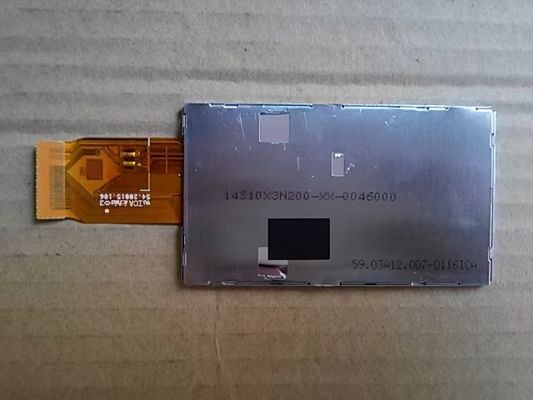

3" 186PPI 480×272 PMP Lcd Display 300cd/M2 RGB 4S1P WLED A030FL01 V2

We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

3" 186PPI 480×272 PMP Lcd Display 300cd/M2 RGB 4S1P WLED A030FL01 V2

3" 186PPI 480×272 PMP Lcd Display 300cd/M2 RGB 4S1P WLED A030FL01 V2
3" 186PPI 480×272 PMP Lcd Display 300cd/M2 RGB 4S1P WLED A030FL01 V2 3" 186PPI 480×272 PMP Lcd Display 300cd/M2 RGB 4S1P WLED A030FL01 V2 3" 186PPI 480×272 PMP Lcd Display 300cd/M2 RGB 4S1P WLED A030FL01 V2

Large Image :  3" 186PPI 480×272 PMP Lcd Display 300cd/M2 RGB 4S1P WLED A030FL01 V2

Product Details:
Place of Origin: China
Brand Name: auo
Certification: Rohs,CE,FCC
Model Number: A030FL01 V2
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Oled Color: 16.7m Colors
Model: WVGA Style: Wide Screen High Resolution 480*272Pixels
Brightness: 300cd Connector: 70
Contrast Ratio: 500:1 Working Time: 10k Hours
High Light:

480×272 PMP Lcd Display

,

186PPI PMP Lcd Display

,

300cd/M2 RGB LCD Display

AUO 3.0inch AUO 70 Pin 3" 480(RGB)×272pixels, 186PPI 300cd/m2 RGB 4S1P WLED A030FL01 V2 for MP3 PMP lcd display



A030FL01 V2 (Alias: A030FL01 V.2) is a 3.0" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, without touch screen. It features an operating temperature range of 0 ~ 60°C , a storage temperature range of -25 ~ 80°C . It's general features are summarized by einklcd in the following: Transflective, WLED Backlight, U/D,L/R Reverse , FPC length 34mm. Based on its features, einklcd recommend that this model be applied to MP3 PMP etc. According to the information stored in einklcd this model mass production on Q3, 2008, Now this model is discontinued.  We inputted this model's specification on Oct 12 2012 for the first time, and the latest update on May 8 2020. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail of A030FL01 V2. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.









Panel Brand
AUO
Panel Model
A030FL01 V2
Panel Size
3.0"
Panel Type
a-Si TFT-LCD, LCM
Resolution
480(RGB)×272, WQVGA, 186PPI
Pixel Format
RGB Vertical Stripe
Display Area
65.52(W)×37.128(H) mm
Bezel Opening
68.12(W)×39.73(H) mm
Outline Size
76.12(W)×43.7(H) mm
Surface
-
Brightness
300 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (TM)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Display Mode
ATR-MVA, Normally Black, Transflective
Best View on
Symmetry
Response Time
15/10 (Typ.)(Tr/Td)
Display Colors
16.7M 61% NTSC
Lamp Type
4S1P WLED
Frequency
60Hz
Touch Screen
Without
Panel Weight
22.2g (Typ.)
Application
3" 186PPI 480×272 PMP Lcd Display 300cd/M2 RGB 4S1P WLED A030FL01 V2 0
Signal Interface

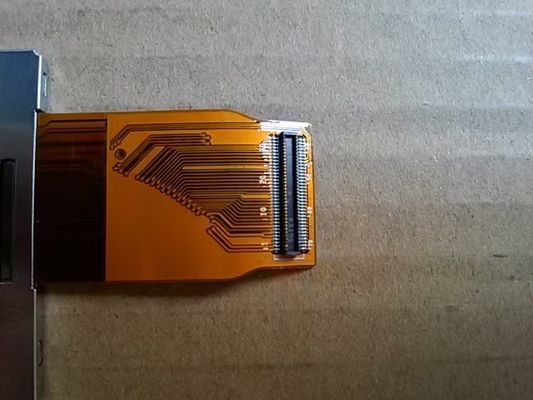

Parallel RGB (1 ch, 8-bit) + SPI , 70 pins Connector
Input Voltage
3.3/3.3V (Typ.)(VDD/VDDIO)
Environment
Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -25 ~ 80 °C

3" 186PPI 480×272 PMP Lcd Display 300cd/M2 RGB 4S1P WLED A030FL01 V2 1
