15Inch BOE Industrial Lcd Display TDA150-005V01 500 cd/m² 3.3V 40Pin WLED 1600(RGB)×1200 [UXGA] 133PPI 16.7M color

We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

15Inch BOE Industrial Lcd Display TDA150-005V01 500 cd/m² 3.3V 40Pin WLED 1600(RGB)×1200 [UXGA] 133PPI 16.7M color

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  15Inch BOE Industrial Lcd Display TDA150-005V01 500 cd/m² 3.3V 40Pin WLED 1600(RGB)×1200 [UXGA] 133PPI 16.7M color

Product Details:
Place of Origin: China
Brand Name: BOE
Certification: Rohs,CE,FCC
Model Number: TDA150-005V01
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing
Resolution: 1600×1200PIXELS 133PPI Style: 40PIN IPS
Brightness: 500CD/M2 Color: 16.7M
Contrast Ratio: 1000 :1 Voltage Supply: 3.3V

15Inch BOE Industrial Lcd Display TDA150-005V01 500 cd/m² 3.3V 40Pin WLED 1600(RGB)×1200 [UXGA] 133PPI 16.7M color



TDA150-005V01 is a 15.0" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by Einklcd in the following: WLED Backlight, With LED Driver, Matte . Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q2, 2016, Now this model is discontinued.  We inputted this model's specification on Mar 29 2018 for the first time, and the latest update on Aug 9 2021. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of TDA150-005V01. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

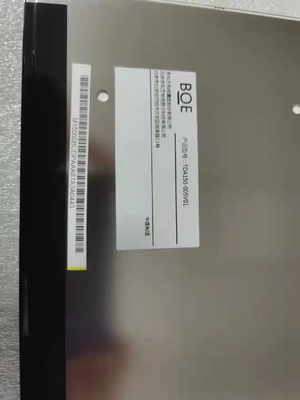

15Inch BOE Industrial Lcd Display TDA150-005V01 500 cd/m² 3.3V 40Pin WLED 1600(RGB)×1200  [UXGA]  133PPI 16.7M color 0

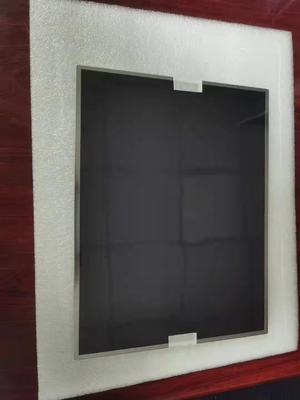

15Inch BOE Industrial Lcd Display TDA150-005V01 500 cd/m² 3.3V 40Pin WLED 1600(RGB)×1200  [UXGA]  133PPI 16.7M color 1
