106PPI 200cd/M2 BOE 20.7inch Desktop Gaming Monitor

106PPI 200cd/M2 BOE 20.7inch Desktop Gaming Monitor
106PPI 200cd/M2 BOE 20.7inch Desktop Gaming Monitor 106PPI 200cd/M2 BOE 20.7inch Desktop Gaming Monitor

Large Image :  106PPI 200cd/M2 BOE 20.7inch Desktop Gaming Monitor

Product Details:
Place of Origin: China
Brand Name: BOE
Certification: Rohs,CE,FCC

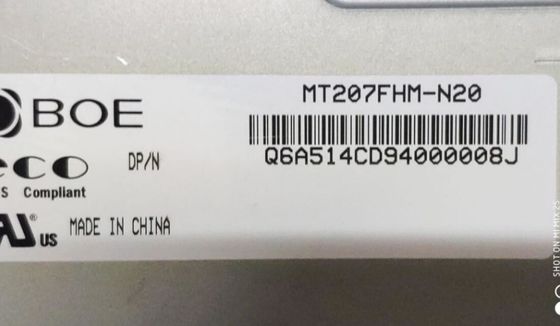

Model Number: MT207FHM-N20
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Oled Color: 16.7M Colors
Model: WLED Style: Wide Screen High Resolution 1920*1080
Brightness: 200cd Connector: 30PIN
Contrast Ratio: 600:1 Working Time: 30k Hours
Input Voltage: 5.0 V
High Light:

BOE 20.7inch Desktop Gaming Monitor

,

200cd/M2 Desktop Gaming Monitor

,

106PPI Computer Widescreen Monitor

BOE 20.7inch Dede desktop lcd monitor 1920(RGB)×1080, FHD, 106PPI 200 cd/m² 30pin 600:1 contrast ratio





Panel Brand
Panel Size
Resolution
Display Area
Outline Size
Brightness
Viewing Angle
Best View on
Display Colors
Frequency
Weight
BOE
20.7"
1920(RGB)×1080, FHD, 106PPI
457.92(W)×257.58(H) mm
477.7(W)×277.8(H) ×10.6(D) mm
200 cd/m² (Typ.)
45/45/25/40 (Typ.)(CR≥10)
6 o'clock
16.7M 72% NTSC
60Hz
1.63Kgs (Typ.)
Panel Model
Panel Type
Pixel Format
Bezel Opening
Surface
Contrast Ratio
Display Mode
Response Time
Lamp Type
Touch Screen
Application
MT207FHM-N20
a-Si TFT-LCD , LCM
RGB Vertical Stripe
461.92(W)×261.58(H) mm
Antiglare (Haze 25%), Hard coating (3H)
600:1 (Typ.) (TM)
TN, Normally White, Transmissive
1.5/3.5 (Typ.)(Tr/Td)
3 strings WLED , 30K hours , Without Driver
Without
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage 5.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

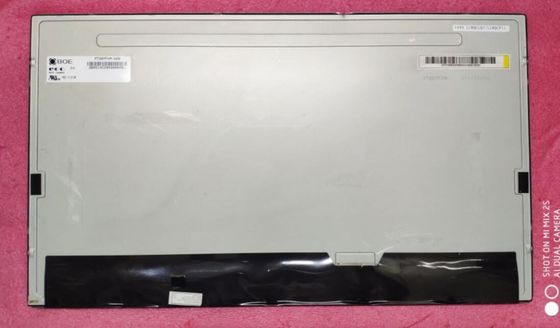

BOE Technology Group Co., Ltd. (hereafter called BOE) MT207FHM-N20 is a 20.7 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Einklcd in the following: WLED Backlight, Reverse I/F, Matte , ES 7.0 Compliant. Based on its features, einklcd recommend that this model be applied to Desktop Monitor etc. According to the information stored in einklcd this model mass production on Q4, 2014, Now this model is in production.  We inputted this model's specification on Mar 21 2015 for the first time, and the latest update on Jun 1 2020. If you want to embed MT207FHM-N20 LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The MT207FHM-N20 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
