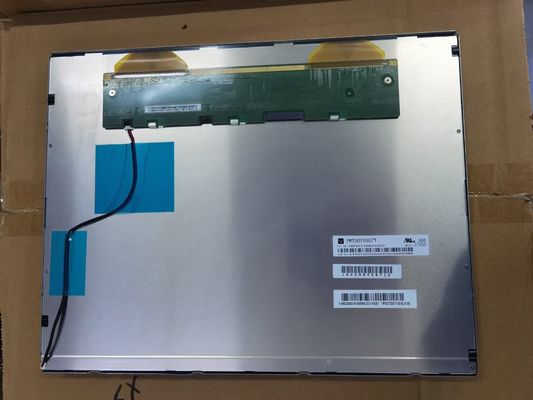

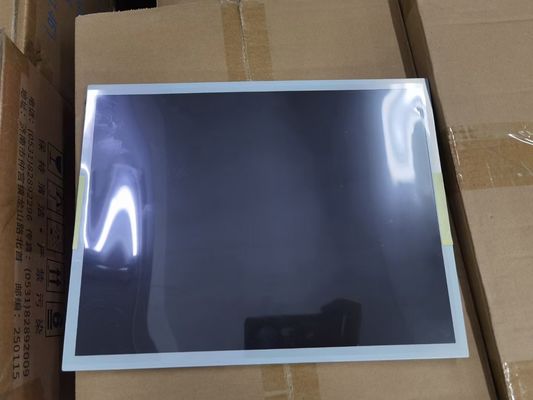

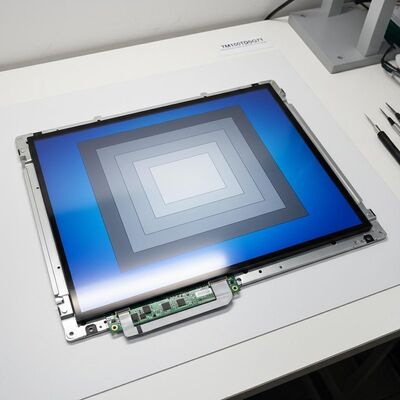

XGA 85PPI 1024x768 Lcd Display Panel 450cd/M2 TIANMA TM150TDSG71

TIANMA TM150TDSG71 15inch Industrial Lcd Display 1024(RGB)×768, XGA, 85PPI 3.3V 20P WLED 450 cd/m² (Typ.)

TM150TDSG71 is a 15.0" diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd. (hereafter called TIANMA), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by Einklcd in the following: Lamp Repaceable, WLED Backlight, Life ≥ 50K hours, With LED Driver, 180° Reverse, 6/8 bit, Matte . Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q3, 2015, Now this model is in production.  We inputted this model's specification on Dec 21 2015 for the first time, and the latest update on Jul 10 2019. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with TIANMA or it's agent to learn lateast production and specification detail of TM150TDSG71. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Panel Brand

TIANMA

Panel Model

TM150TDSG71

Panel Size

15.0"

Panel Type

a-Si TFT-LCD, LCM

Resolution

1024(RGB)×768, XGA, 85PPI

Pixel Format

RGB Vertical Stripe

Display Area

304.128(W)×228.096(H) mm

Bezel Opening

307.4(W)×231.3(H) mm

Outline Size

326.5(W)×253.5(H) ×12.1(D) mm

Surface

Antiglare

Brightness

450 cd/m² (Typ.)

Contrast Ratio

800:1 (Typ.) (TM)

Viewing Angle

80/80/80/80 (Typ.)(CR≥10)

Display Mode

TN, Normally White, Transmissive

Best View on

12 o'clock

Response Time

8 (Typ.)(Tr+Td)

Display Colors

262K/16.2M 62% NTSC

Lamp Type

WLED , 50K hours , With LED Driver

Frequency

60Hz

Touch Screen

Without

Panel Weight

1.00Kgs (Typ.)

Application

Signal Interface

LVDS (1 ch, 6/8-bit) , 20 pins Connector

Input Voltage

3.3V (Typ.)

Environment

Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
