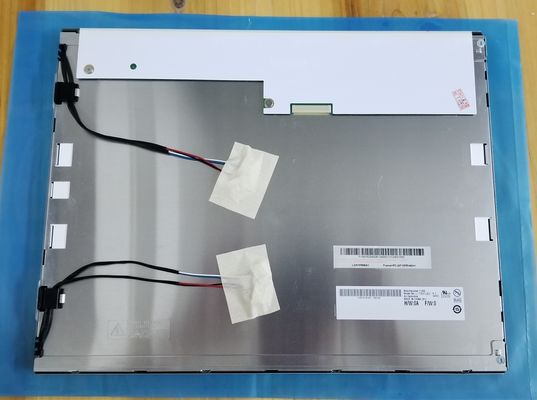

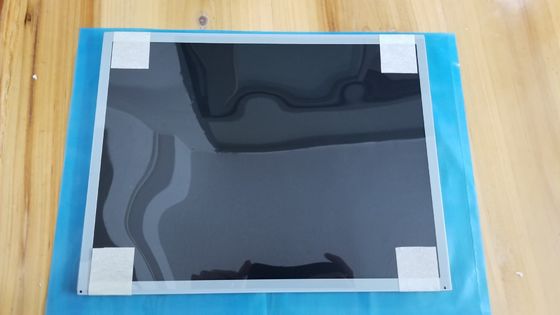

1024×768 85PPI 15" AUO Industrial Lcd Display A150XN01 V2 3.3v

15Inch AUO Industrial Lcd Display model A150XN01 V2 1024(RGB)×768 [XGA] 85PPI 3.3v LDVS 20pin 350cd/m2

AU Optronics Corp. (hereafter called AUO) A150XN01 V2 (Alias: A150XN01 V.2) is a 15.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 70°C , a storage temperature range of -20 ~ 70°C . It's general features are summarized by einklcd in the following: WLED Backlight, 180° Reverse, Matte . Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q1, 2009, Now this model is discontinued. We inputted this model's specification on Oct 20 2012 for the first time, and the latest update on Sep 6 2017. If you want to embed A150XN01 V2 LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's distributor to learn lateast production and specification detail. The A150XN01 V2 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

• Brand
  AUO
• Model
  A150XN01 V2

• Diagonal Size
  15.0 inch
• Type
  a-Si TFT-LCD, LCM

• Pixel Format
  1024(RGB)×768 [XGA] 85PPI
• Configuration
  RGB Vertical Stripe

• Active Area
  304.128(H)×228.096(V) mm
• Outline Dim.
  326(H)×252(V) ×11.3(D) mm

• Bezel Area
  308.1(H)×232.1(V) mm
• Treatment
  Antiglare, Hard coating (3H)

• Luminance
  350 cd/m² (Typ.)
• Contrast Ratio
  700:1 (Typ.) (TM)

• View Direction
  -
• Response Time
  8/4 (Typ.)(Tr/Td)

• Viewing Angle
  70/70/65/60 (Typ.)(CR≥10)
• Operating Mode
  TN, Normally White, Transmissive

• Support Color
  16.2M 70% NTSC
• Light Source
  WLED , 10K hours , W/O Driver

• Weight
  970g (Typ.)
• Designed For


• Frame Rate
  60Hz
• Touch Panel
  Without

• Interface Type
• LVDS (1 ch, 8-bit) , 20 pins Connector

• Power Supply
• 3.3V (Typ.)

• Environment
• Operating Temperature: 0 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C
