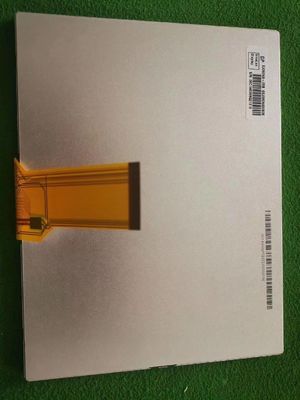

800*600 250CD/M2 Digital Photo Frame Lcd 125PPI 50 PIN EJ080NA-05B

innolux 8inch digital photo frame lcd EJ080NA-05B 800*600pixels 125PPI 50PIN 250CD/M2

Manufacturer

Innolux

Model Name

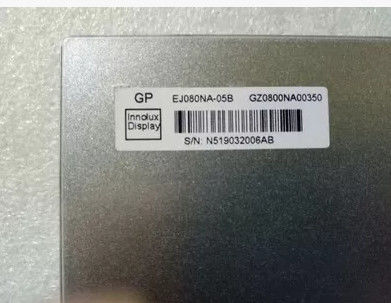

EJ080NA-05B

Screen Size

8.0 inch

Screen Type

LCM, a-Si TFT-LCD

Pixel Number

800(RGB)×600 (SVGA) 125PPI

Arrangement

RGB Vertical Stripe

Active Area(mm)

162 × 121.5 (H×V)

Outline(mm)

183 × 141 × 5.9 (H×V×D)

Bezel Area(mm)

164.8 × 124.3 (H×V)

Treatment

Antiglare

Luminance

250 cd/m² (Typ.)

Contrast Ratio

500 : 1 (Typ.) (TM)

Viewing Angle

70/70/50/70 (Typ.)(CR≥10)

Response

10/15 (Typ.)(Tr/Td) ms

Good View at

6 o'clock

Work Mode

TN, Normally White, Transmissive

Color Depth

262K/16.7M 50% NTSC

Backlight

3S9P WLED , 20K hours , No Driver

Mass

241g (Typ.)

Used for

Refresh Rate

60Hz

Touchscreen

Without

Signal Type

Parallel RGB (1 ch, 6/8-bit) , FPC 50 pins

Voltage Supply

3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)

Max. Ratings

Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

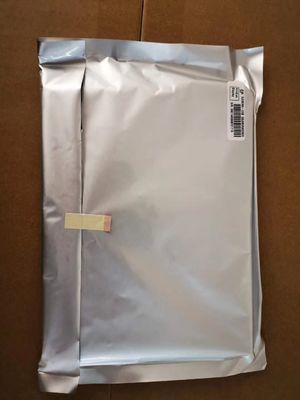

All lcd will be deliveried before one by one full test to make sure the quality was qualified.
